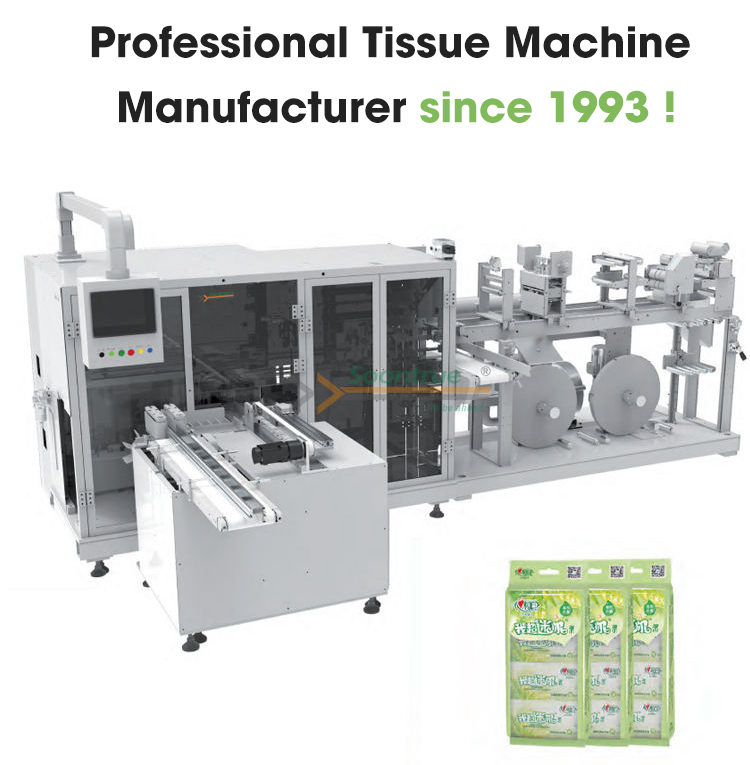

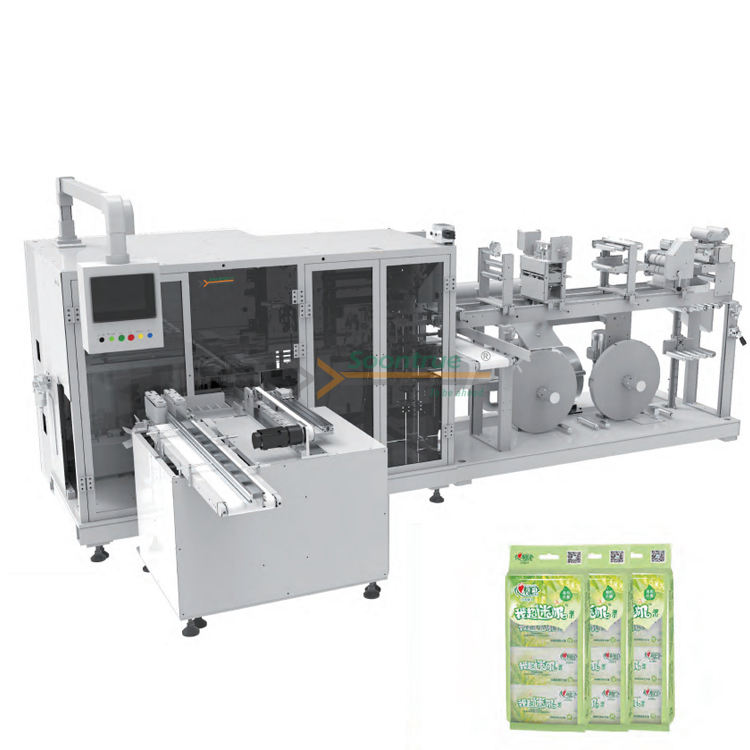

ZB803 Mini wet wipes packing machine
ZB803 Mini wet wipes packing machine
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability
|
Model
|
ZB803
|
|
|
Packing tube film
|
Max tube film diameter
|
φ550 mm
|
|
Tube film core
|
φ76-80mm
|
|
|
Packing film
|
Applicable film thickness
|
0.04mm—0.07mm
|
|
Applicable film material
|
PE double side sealing film(recommend), different heat sealing laminated film
|
|
|
Speed
|
Design speed
|
30 packs/min
|
|
Production speed
|
12-25 packs/min (according to different product characteristics)
|
|
|
Power rate
|
Motor power
|
10 Kw
|
|
Main motor heating power
|
3.0Kw
|
|
|
Packing specs
|
L
|
120 mm -200 mm
|
|
W
|
70mm -110 mm
|
|
|
H
|
20 mm -60 mm
|
|
|
Machine weight
|
3000KG
|
|
|
Machine out-dimension
|
7400mm×1000mm×2200mm(LXWXH)
|
|
|
Power supply
|
380V 50Hz ( 3 phase 4 wires)
|
|
|
||
|

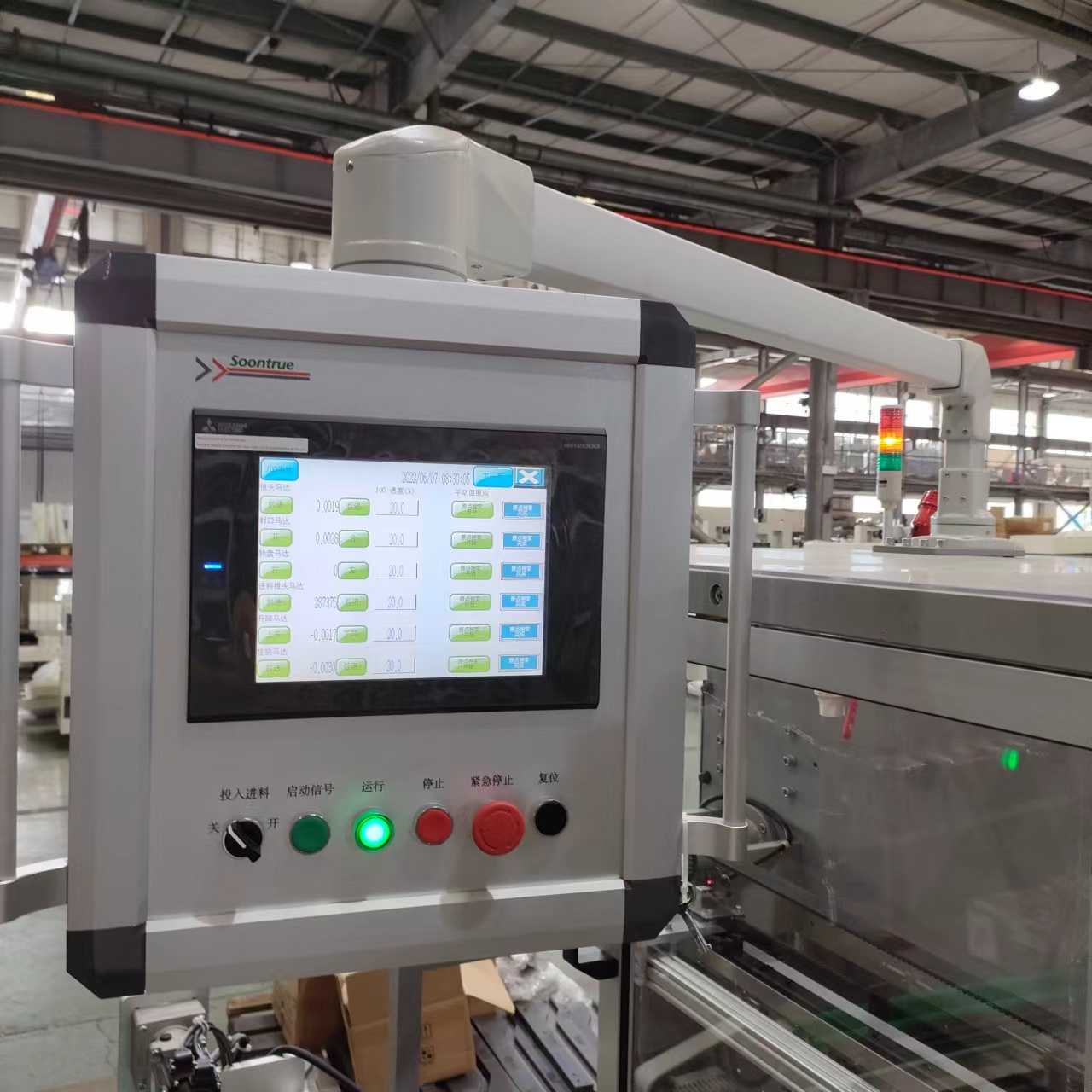

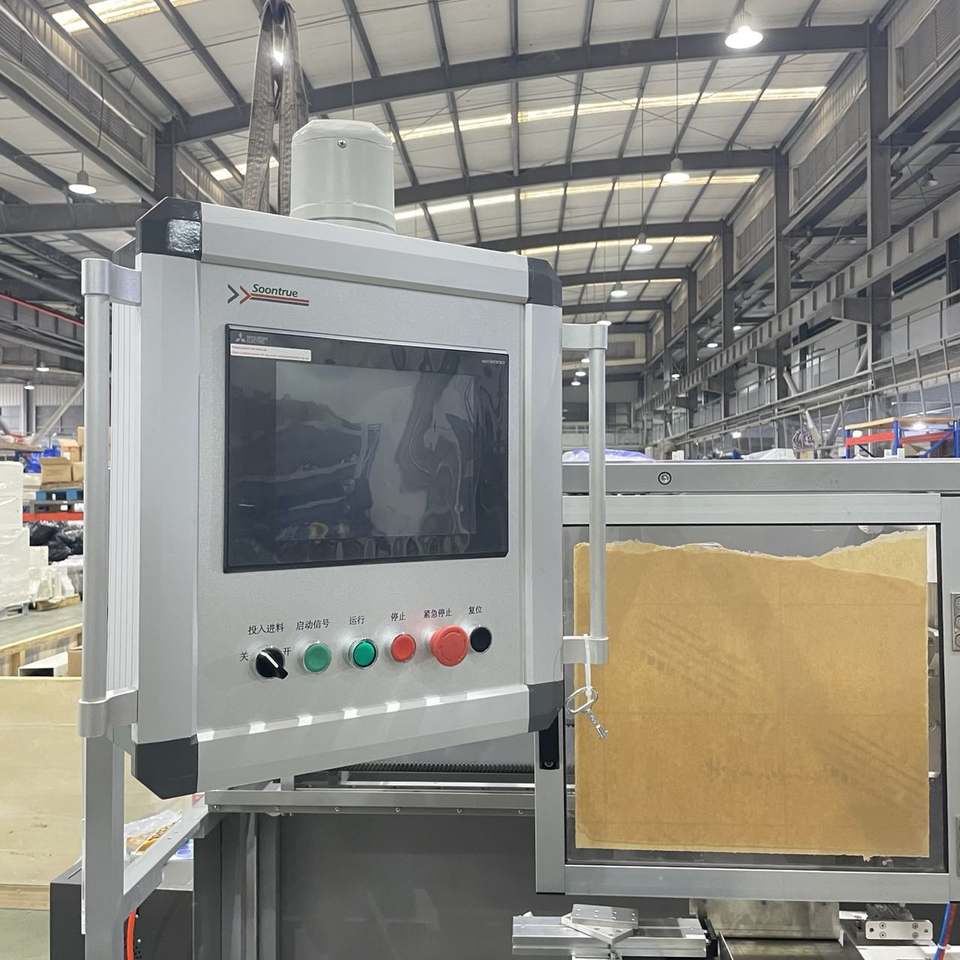

Optional cantilever HIM touch screen Control for easy operation and parameter setting | |
|

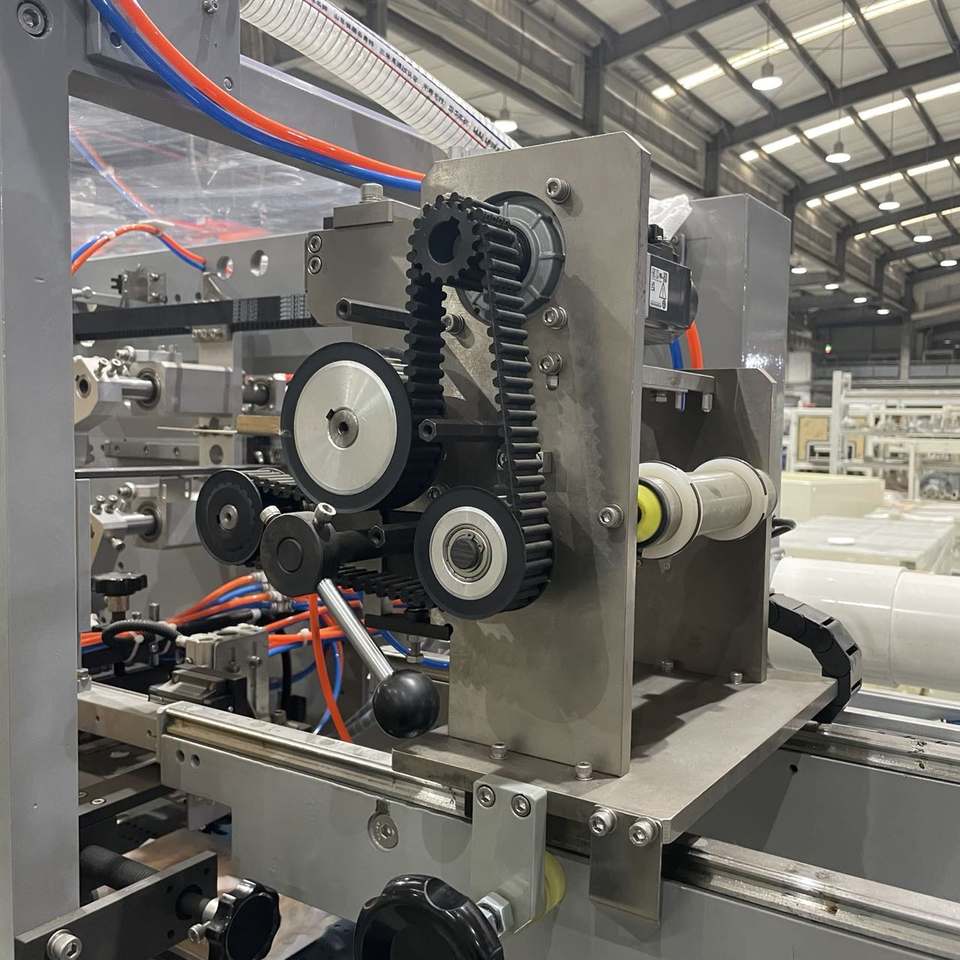

Feeding conveyor is controlled by inverter motors to feed the product into the pushing structure to equip with pushing servo motor stably separate each stacks of product | |
|

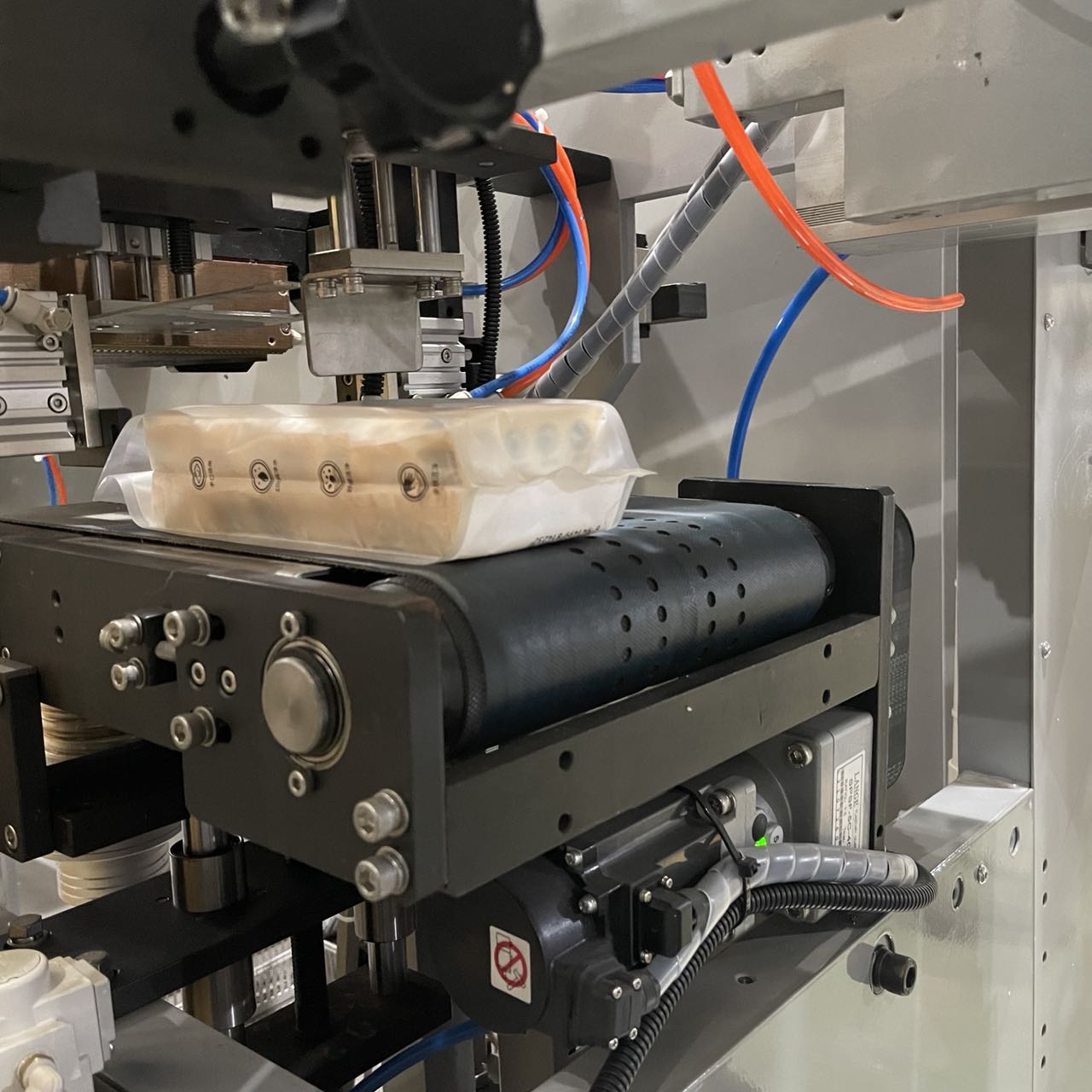

Bag making and end sealing is high class system heating control, stable difference is +-1°, during high speed running, the machine can complete the bag making | |
|

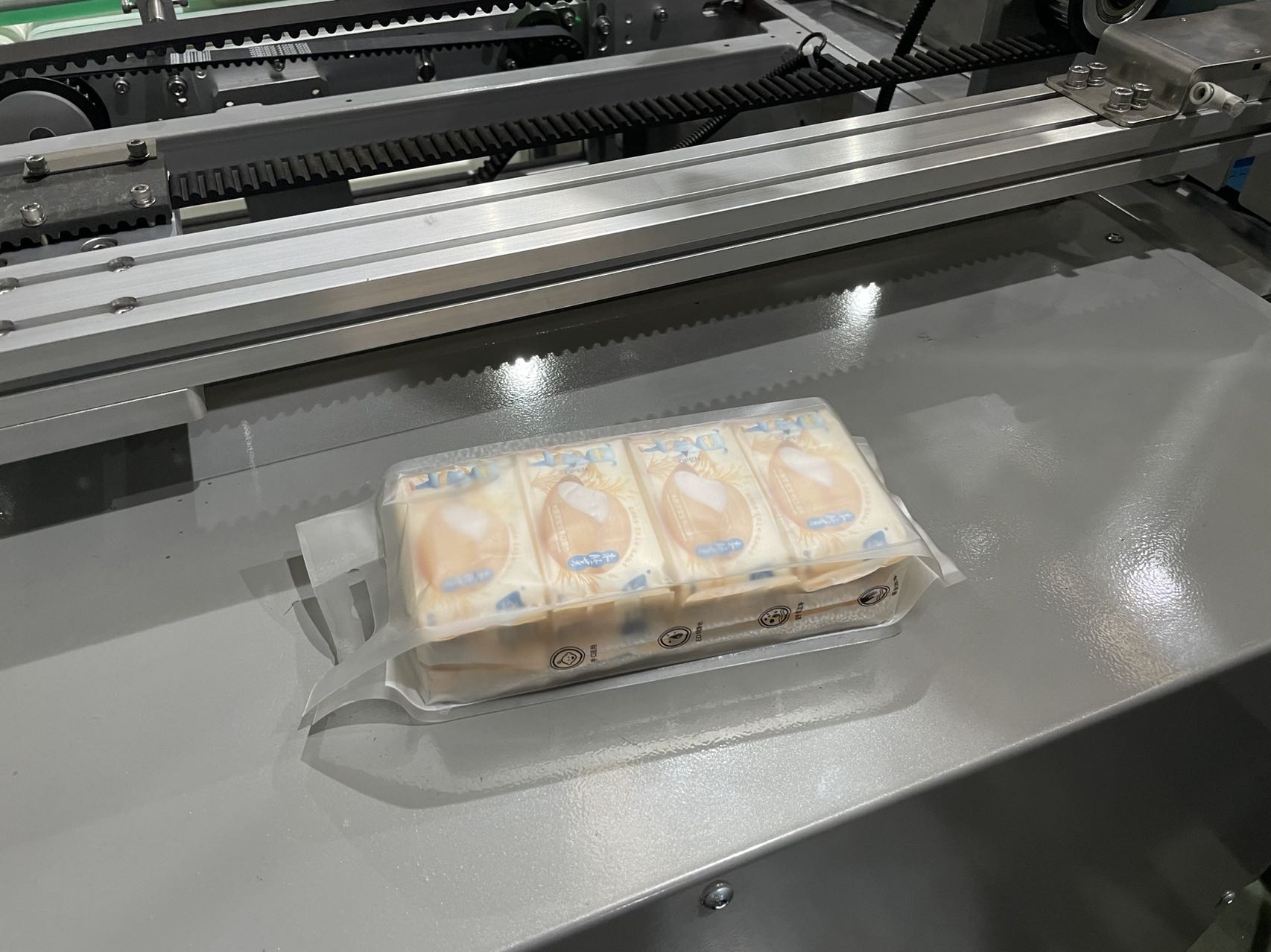

Finished product display | |
