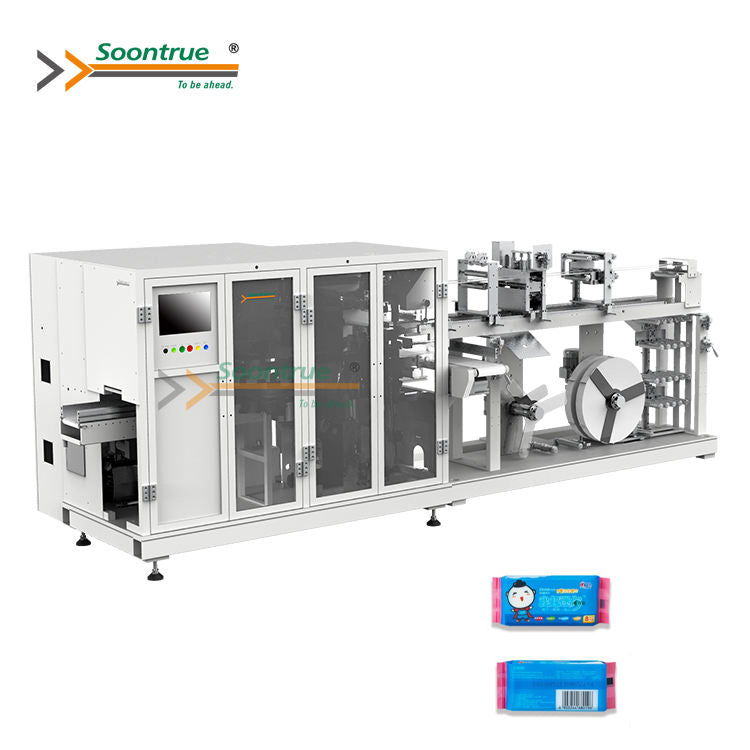

ZB802 Double push rod mini wet wipes packing machine

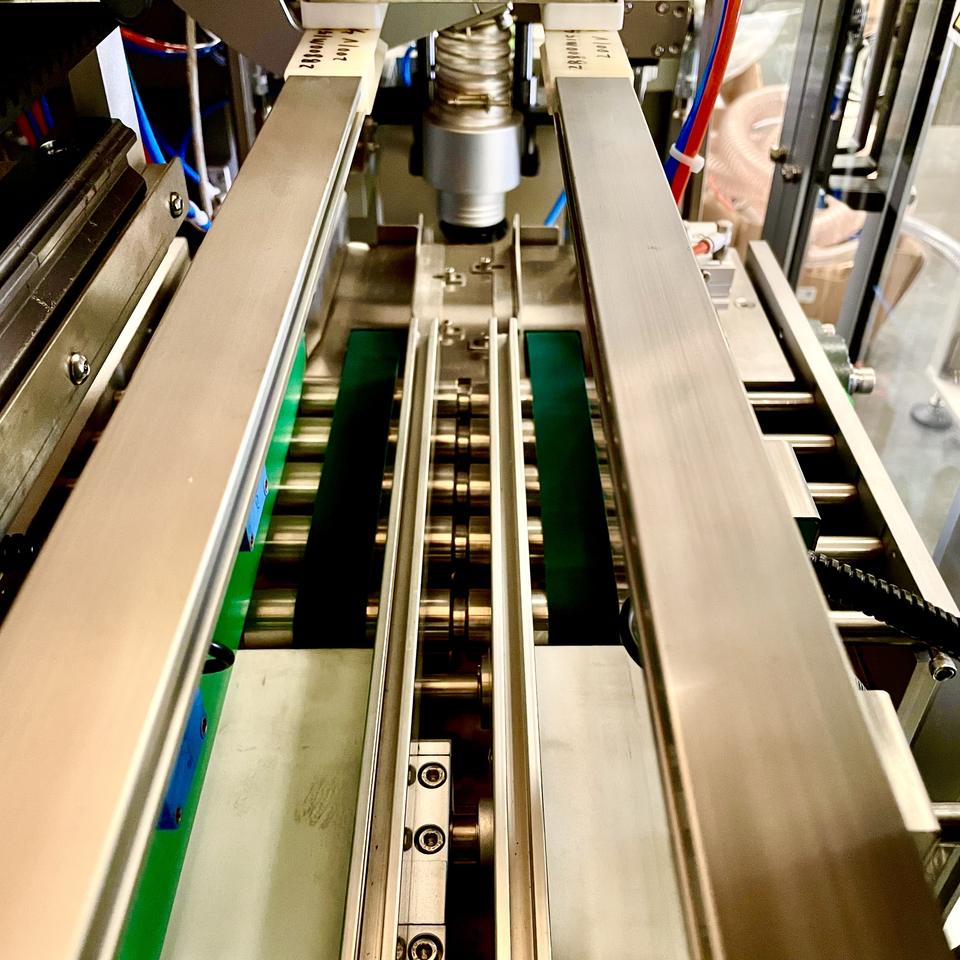

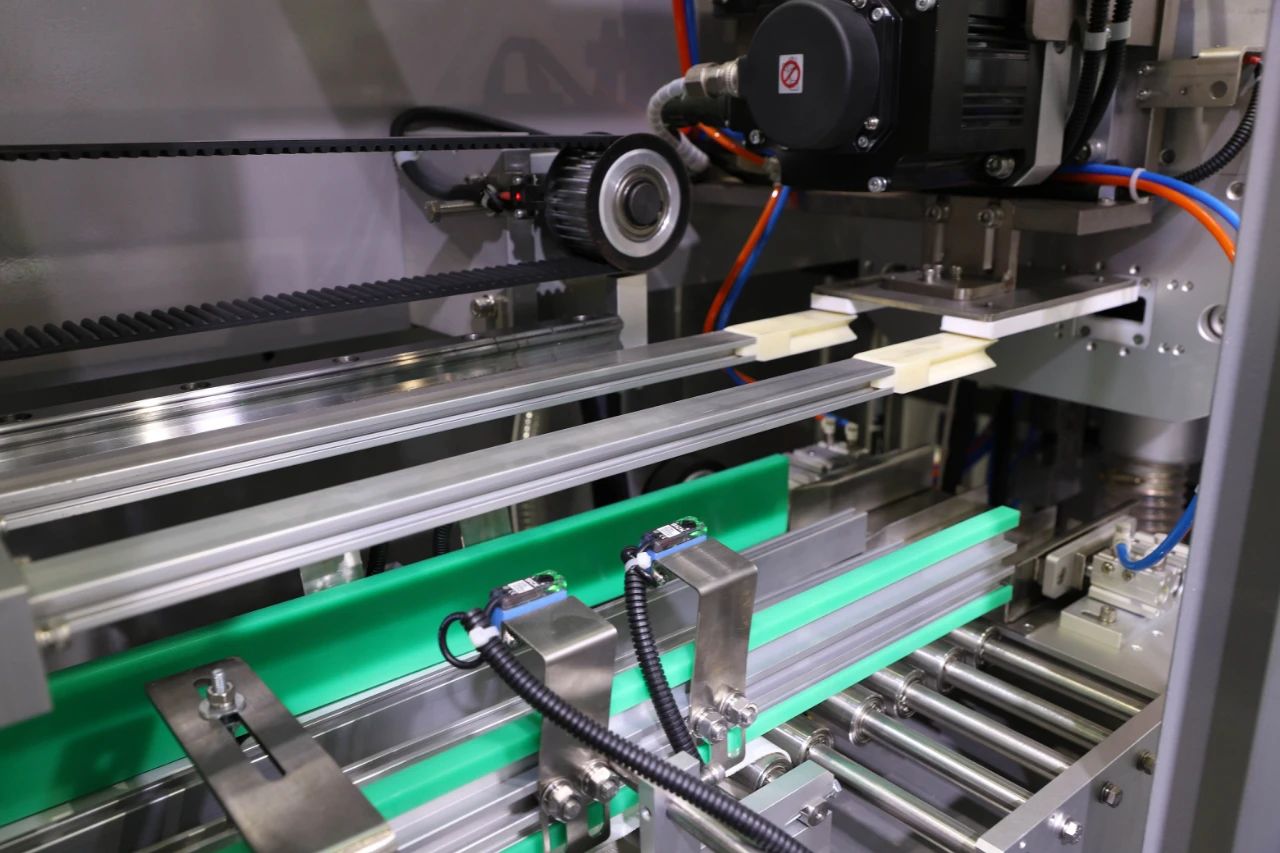

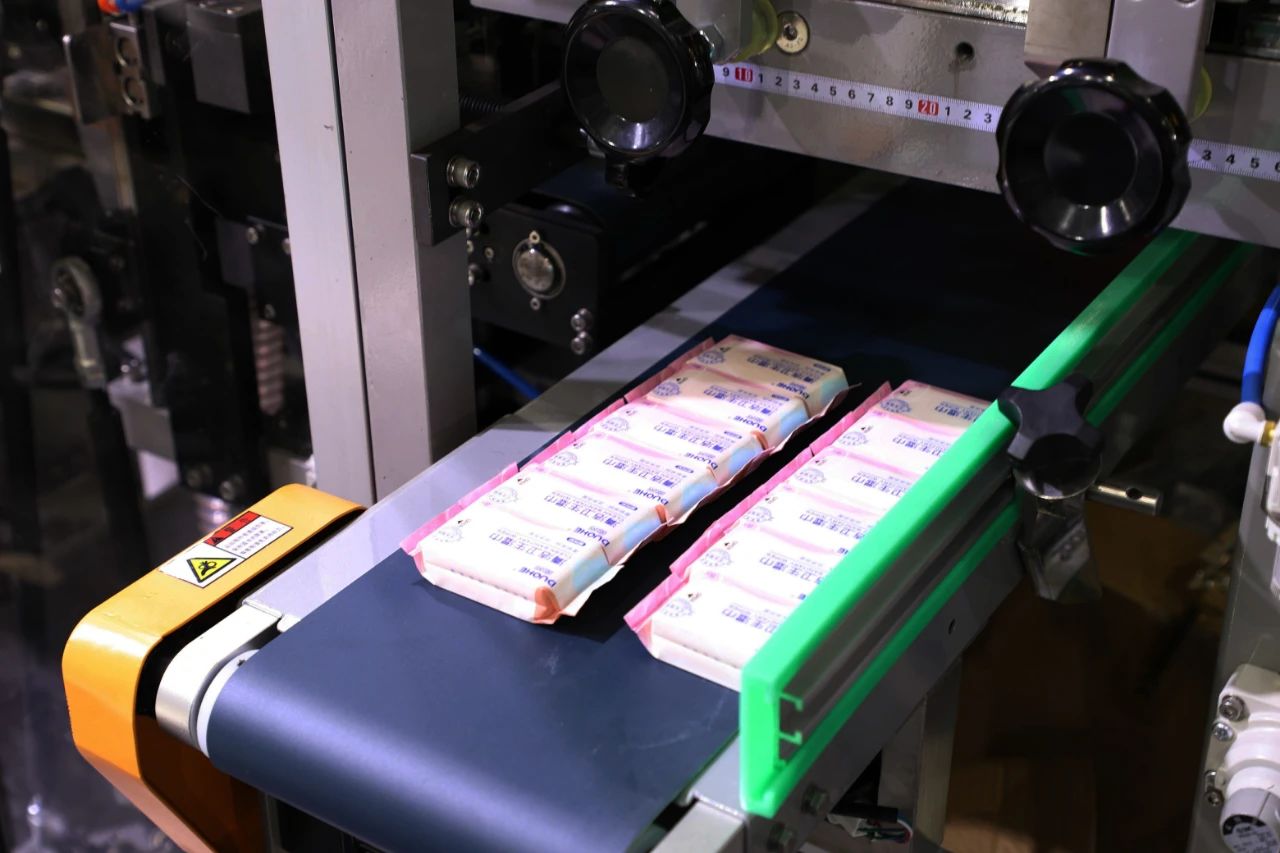

Feeding conveyor and pushing conveyor
Arranging conveyor is controlled by inverter motors to feed the product into the pushing structure to equip with pushing servo
motor stably separate each stack of product.
No product, no bag filling, no waste of bags.
Standard machine
The machine is controlled by 9 shaft Mitsubishi J4 series servo, fast reaction and accurate movement.
The control system is equipped with Mitsubishi Q series PLC, CUP with Mitsubishi J4 high-resolution servo, high speed running performance

Model	ZB802
Max tube film diameter	φ550 mm
Tube film core	φ76-80mm
Applicable film thickness	0.05mm—0.08mm;
Applicable film material	PE double side sealing film(recommend), different heat sealing laminated film
Design speed	120 packs/min
Production speed	90-110 packs/min (according to different product characteristics)
Motor power	10 Kw
Main motor heating power	3.0Kw
Packing specs	65 mm -120 mm(L)
	40 mm -60 mm(W)
	20 mm -40 mm(H)
Machine weight	3000KG
Machine out-dimension	7400mm×1000mm×2200mm(LXWXH)
Power supply	380V 50Hz ( 3 phase 4 wires)
Compressed air qty	6kg/cm2 0.65m3/min
Machine noise	≤75(dB)
	Stable performance and fast response Adopt 9-axis Mitsubishi J4 series servo independent drive, fast response speed and precise action. The control system is equipped with Mitsubishi Q series PLC, motion CPU and Mitsubishi J4 high-resolution servo, and the high-speed running performance is more stable.

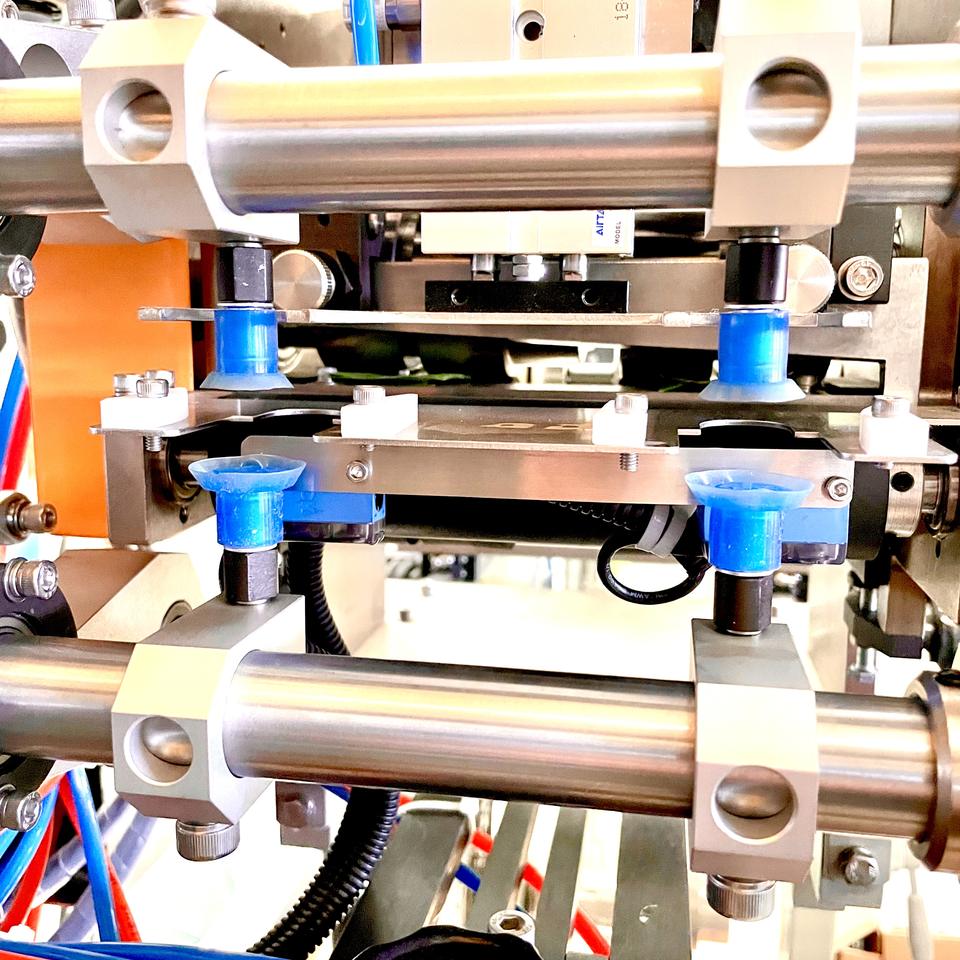

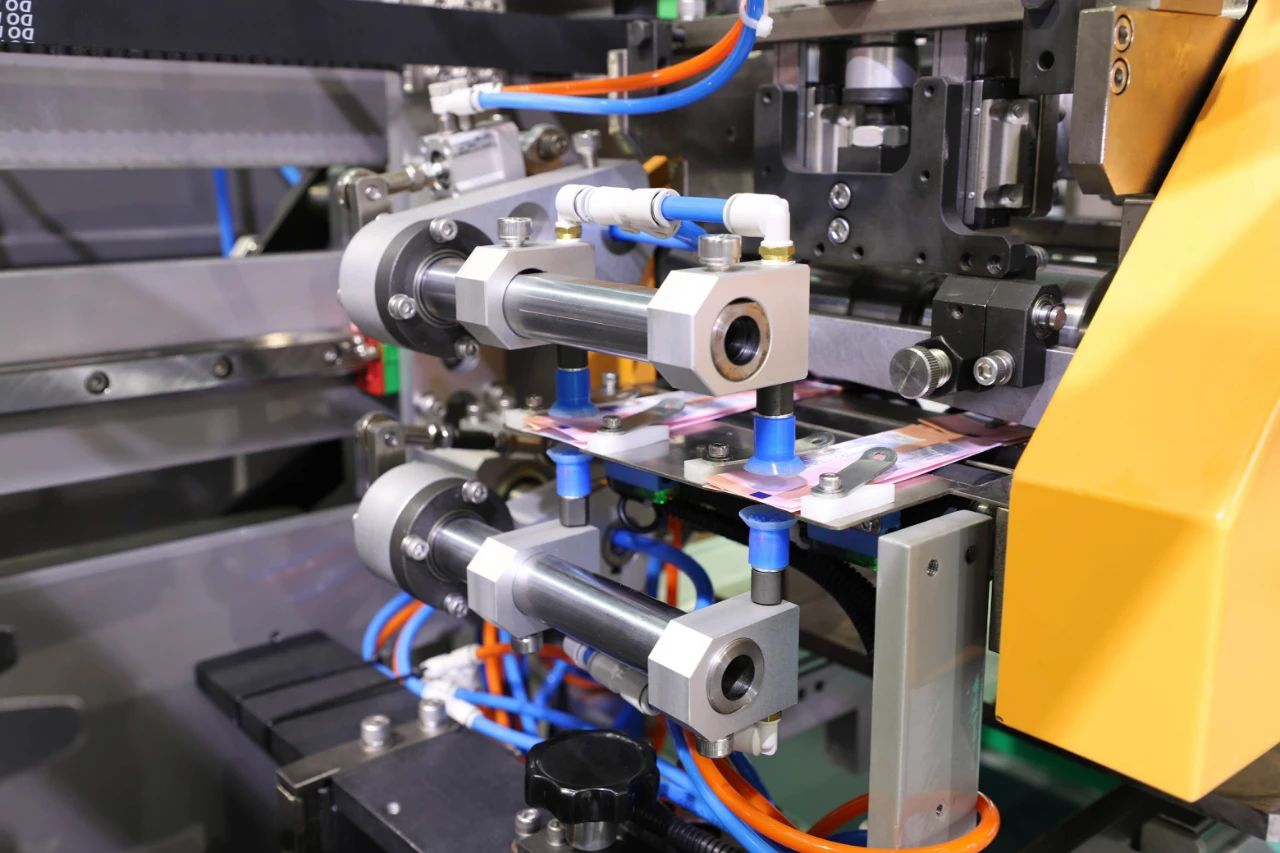

	High automatic detection accuracy Bag opening detection, if the bag opening is unsuccessful, it will not push the material; Material detection function, no material is not taken out of the bag, and no material is automatically closed for a long time.
	High passed rate and quality guaranteed Omron temperature high-end control system heating tube control, the stability deviation is ± 1. When running at high speed, ensure that each bag can complete the bag making
	Easy to operate, improve quality and efficiency The touch screen control system displays the parameter settings, the product parameters can be easily switched, the replacement of specifications is more convenient, the sealing is firm, and the effect is beautiful.
