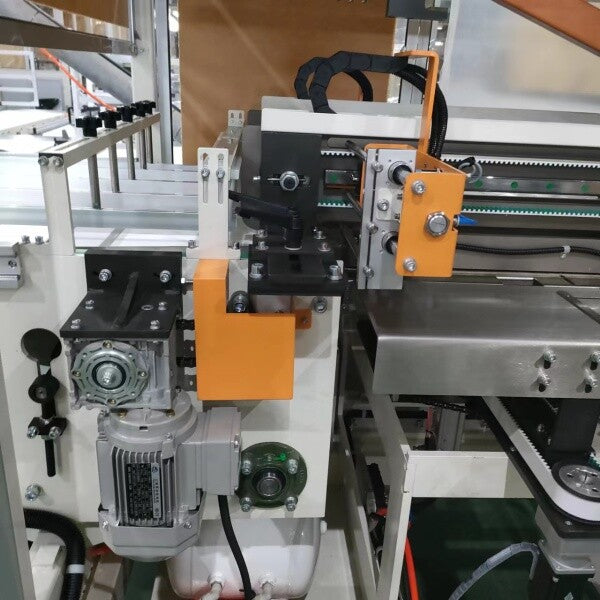

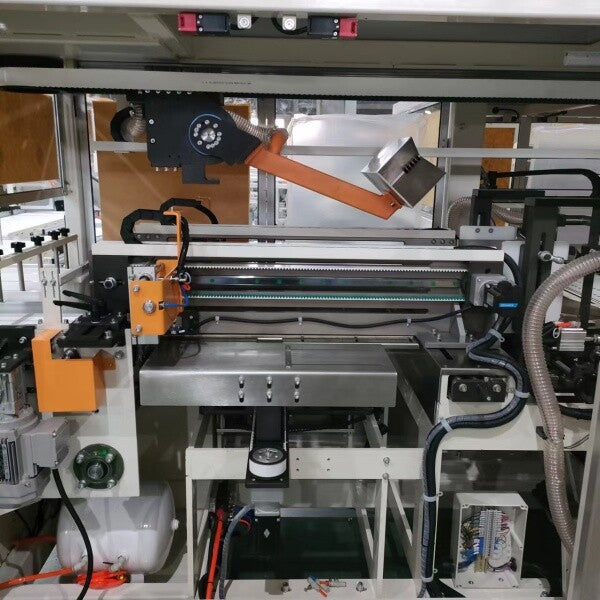

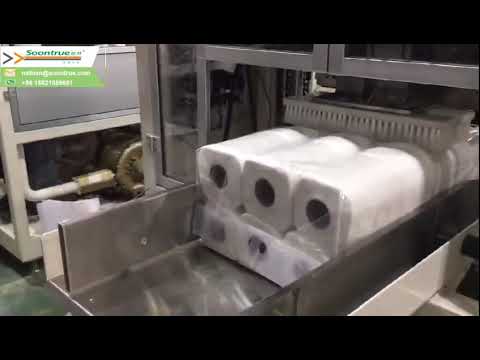

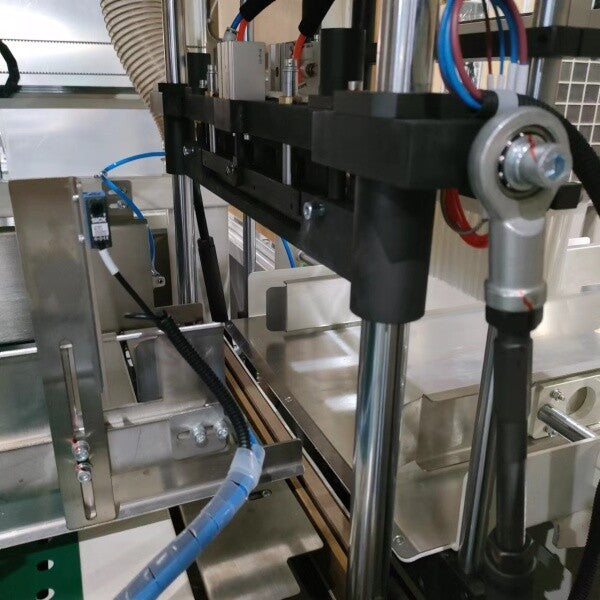

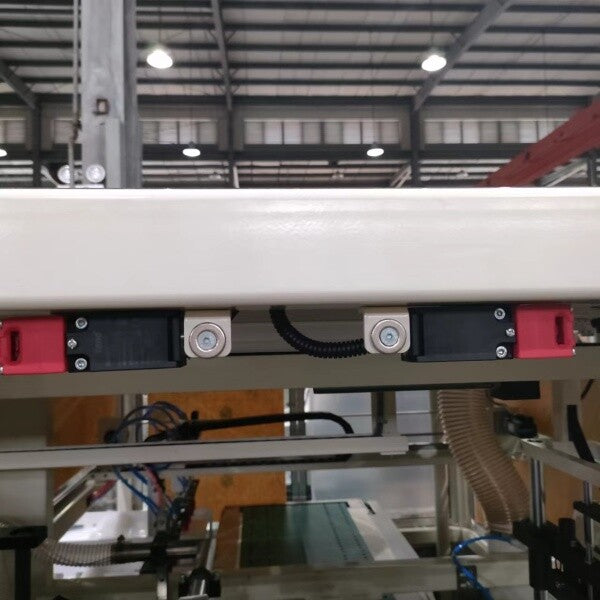

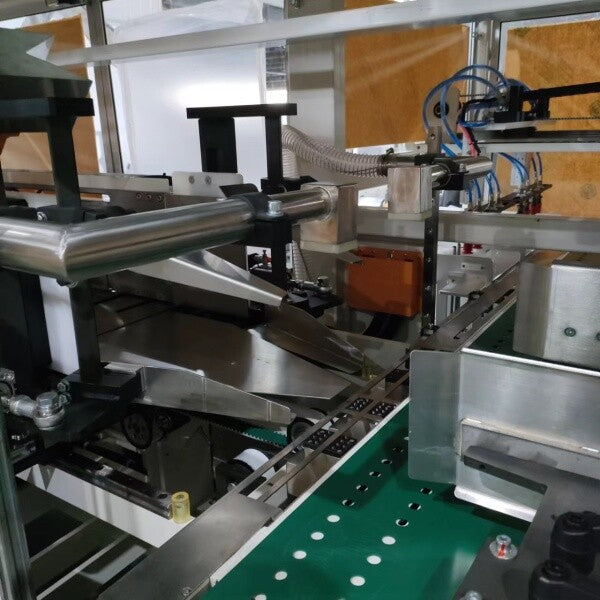

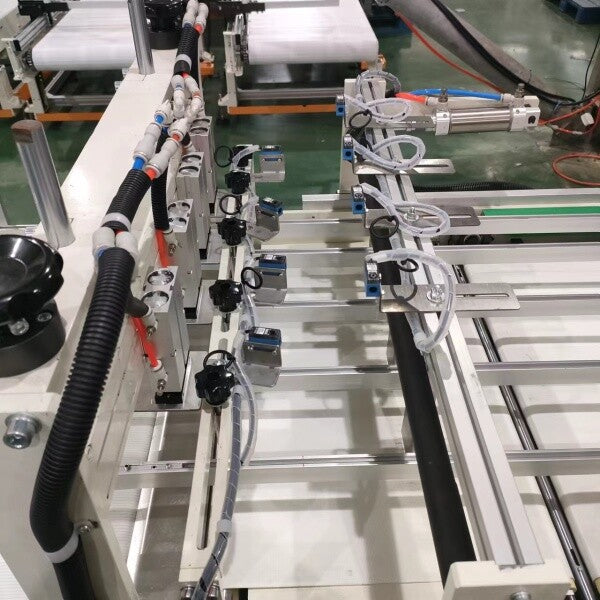

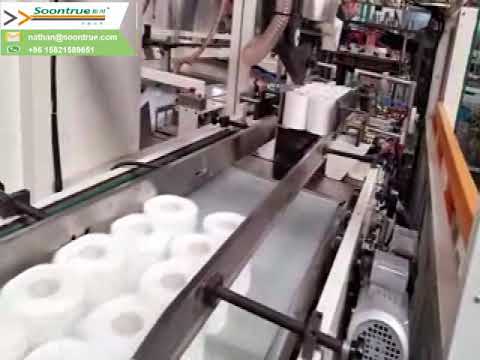

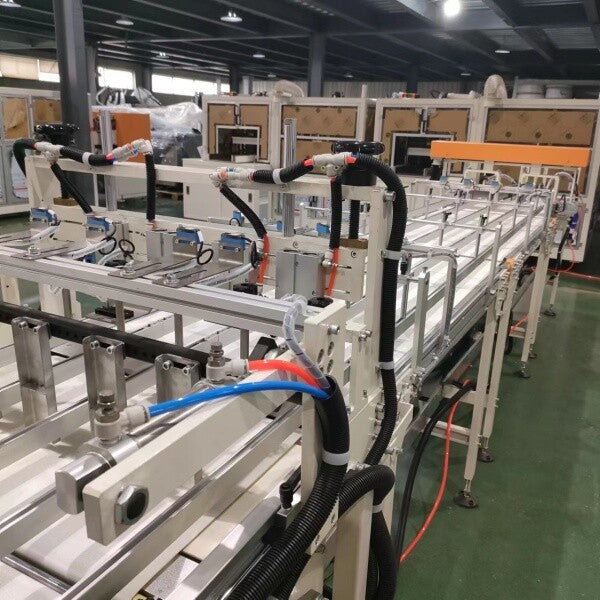

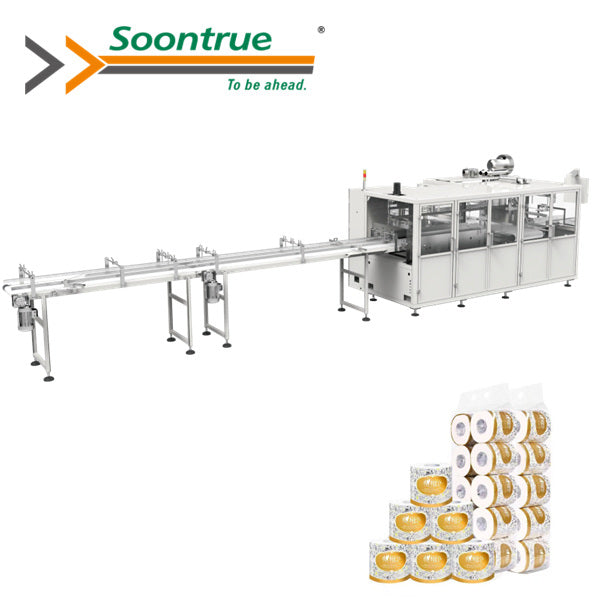

ZB690F Multi Toilet Roll Packing Machine
ZB690F Multi Toilet Roll Packing Machine
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability
Applicable
As a professional roll tissue machine supplier, Soontrue can provide various toilet roll packaging machine and bandsaw machines with different specification choices, which can greatly meet the needs of different customers.
| Model | ZB690F |
| Design speed | 25 Packs / min |
| Max work speed | 20 Packs / min |
| Maximum length Maximum width Maximum height | 720mm 160～480mm 90～250mm |
| Longest size of the bag | 900mm |
| Pre-made bag stock | Two bag libraries, and each bag library stores 300 pre-made bags |
| Material and requirements | M-type pre-made bags with exhaust holes |
| Machine size | 10340×2700×1800mm(L×W ×H , including feeding line and discharging part) |
| Power | The single installed power is 22Kw, and the using power is 20Kw |
| Power supply | 380V ± 10%, 50Hz ± 5%, control voltage using DC 24V |
| Air supply | 0.5～0.7Mpa ,Air consumption：350L/min |
| Weight | About 4000kg |
| Noise | <80db |
|
|
