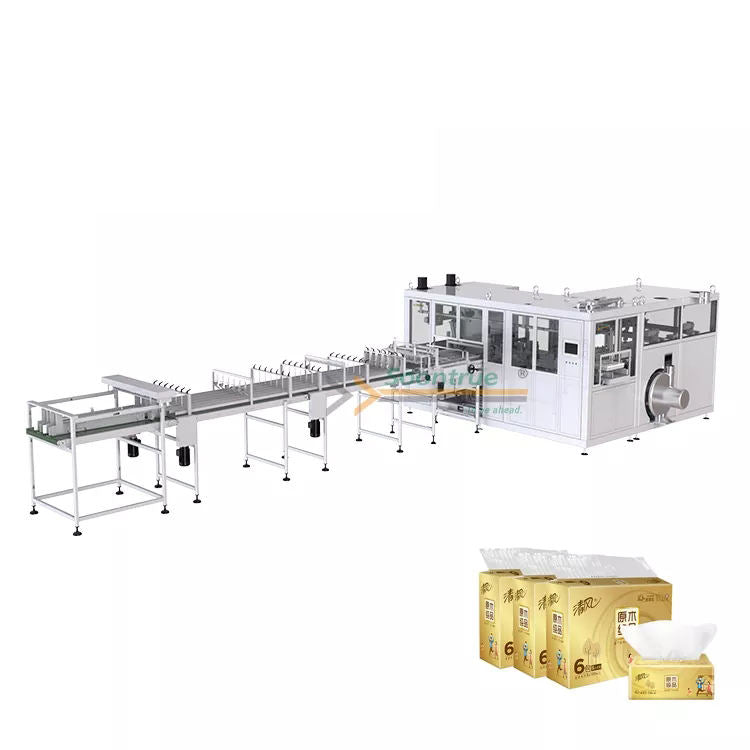

ZB680HN High speed facial tissue bundle packing machine

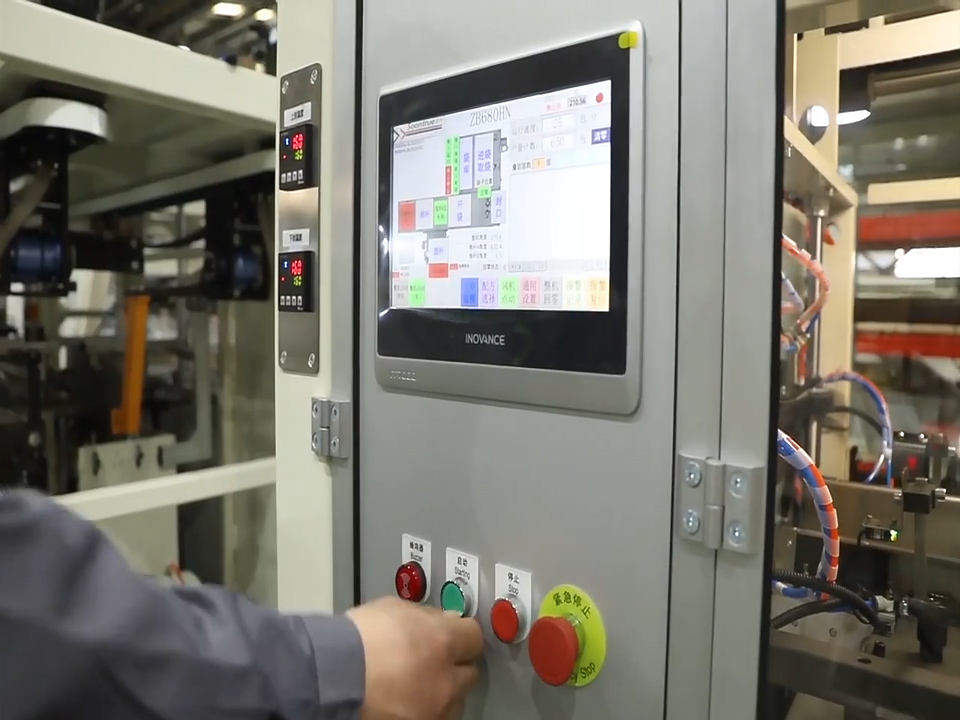

The machine is controlled by motion controller and servo motors, high immunization, easy for operation, high accuracy location and stable running;
All of the servo drive power is 20% higher than drive motors, and inverter power is 20% higher than motor power;
Compact design, small space requirement and easy to form as production line;
Using well-known components for stable and mature performance;

Machine model	ZB680HN
Max finished product length	500mm
Finished product width	130~420mm
Finished product height	90~220mm

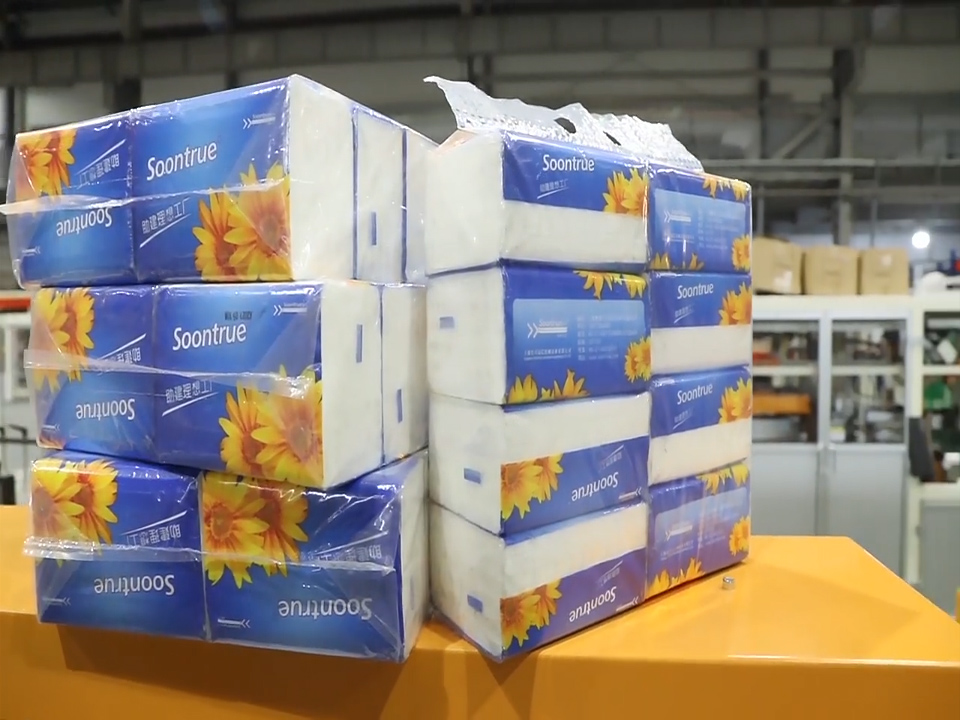

Packing type	Single layer single row 3-6 bags
	Double row 6-12 bags
	Triple rows
	Double layer
	Triple layer
Packing speed	Single layer 40 bundles/min,
	Double layer 10 bundles/min,
	Triple layer 6 bundles/min,
Air consumption	Around 0.6~0.7Mpa, 330L/min(Customer prepare the air compressor);
Whole power	Whole power is 28KW,using power is around 26KW;
Safety	Machine have CE certificate;
Bundle bag trim	The machine will cut 25-30mm of the bags, the timed off film automatically come into the waste cabin;
Bundle bag material	OPP,CPP,PE pre-made bag and so on; thickness:45~50μm Pre-made bag and not adhesive together by static
Power supply	380V± 5%,
	50Hz three-phase four wire + ground wire,
	control voltage all use DC 24V;
Bundle bag trim	The machine will cut 25-30mm of the bags, the timed off film automatically come into the waste cabin;
	Equipped with auto feeding mechanism, which can realize the rapid switch of single-double-row and single-layer and multi-layer product packing size, and the design space is convenient for maintenance

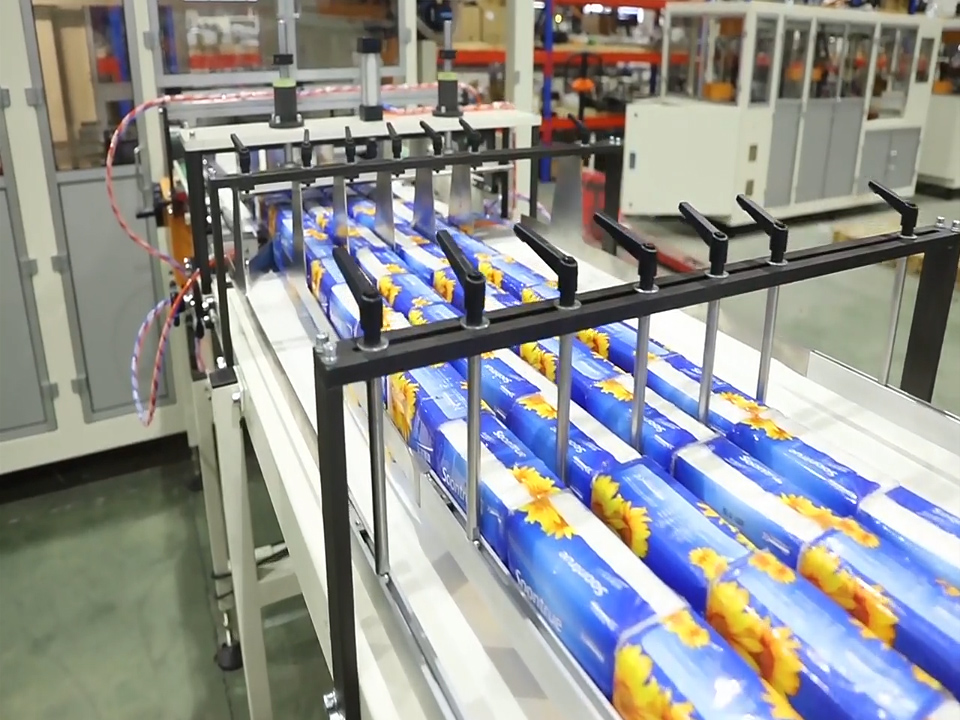

	The multi-push rod cyclic reciprocating push bag mechanism makes the feeding softer,smooth

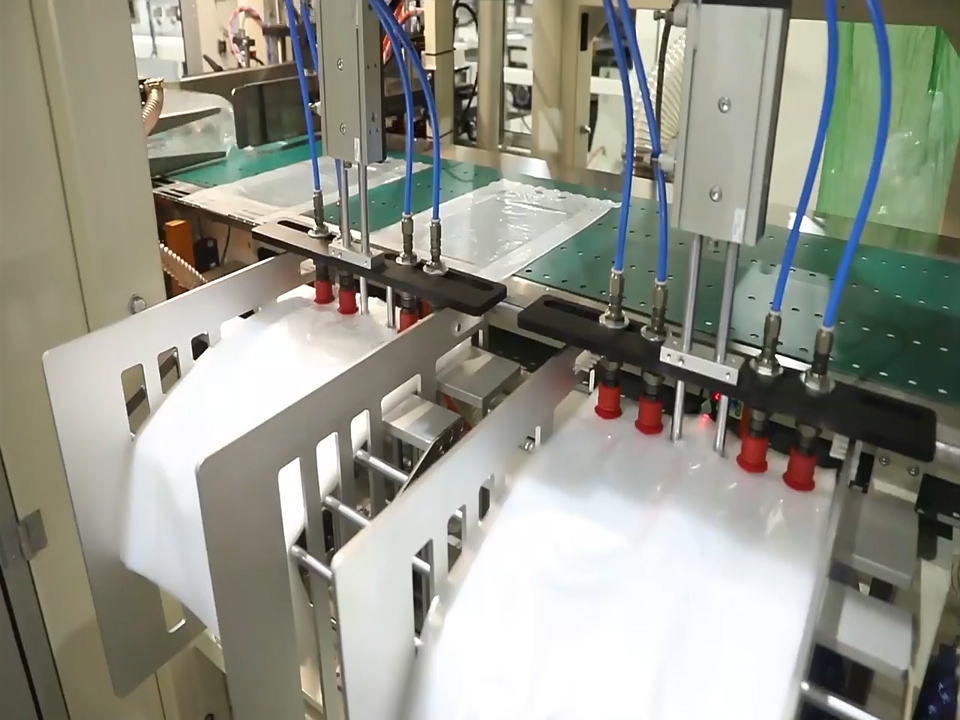

	Automatic and accurate bag delivery, automatic alarm or shutdown when bags are missing
	The heating control adopts a unique constant temperature sealing control method to ensure the sealing is smooth and perfect
