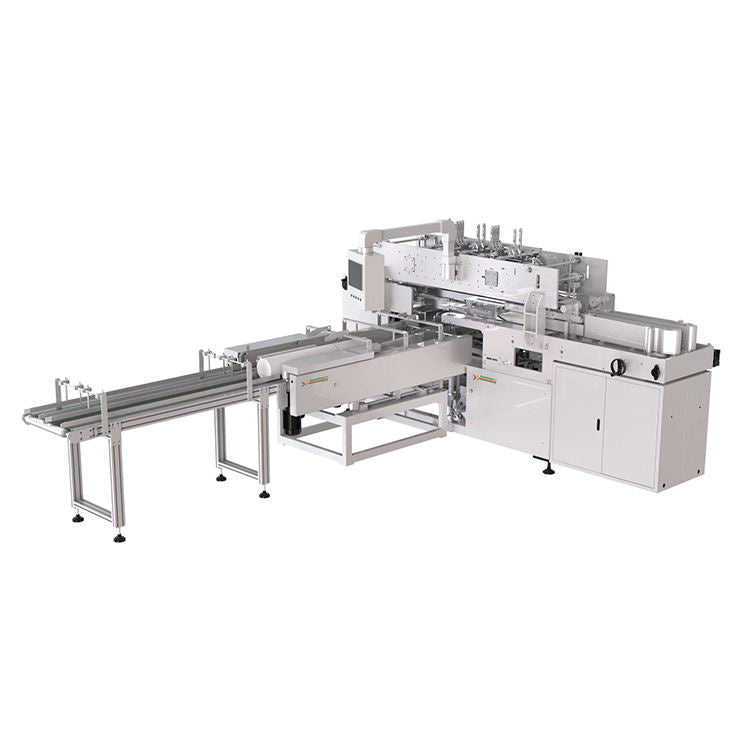

ZB580 Three - dimensional multi - function film wrapping machine

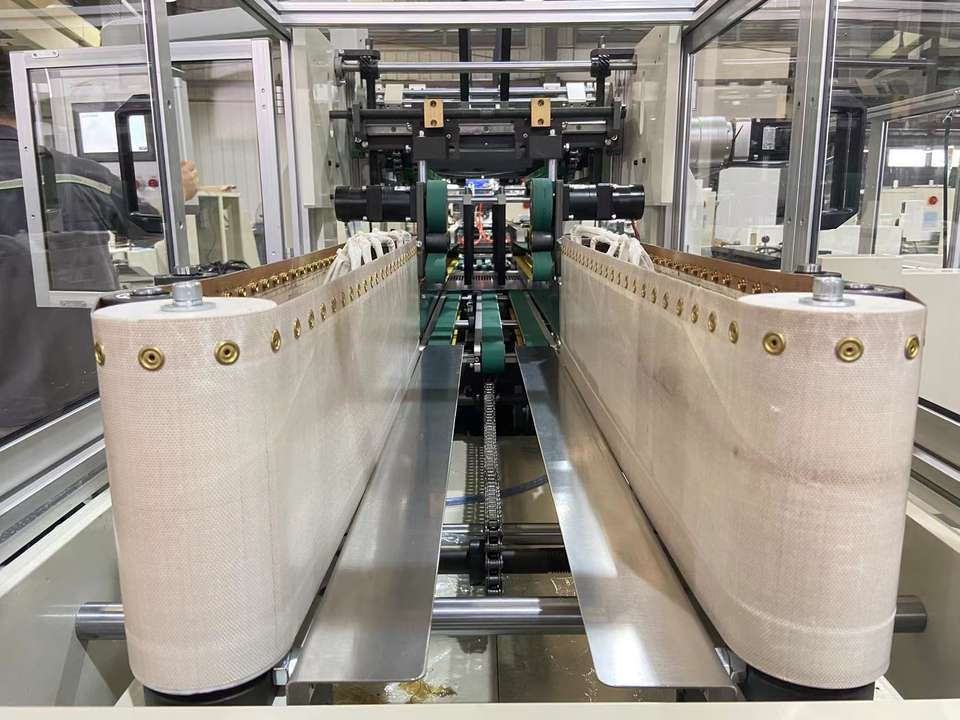

The front end material feeding conveyor & pushing conveyor
This machine adopts double-channel feeding, double-channel material handling, and independent servo driving.
It has the function of no empty bag, which can realize the feeding tailstock runs without the film moving, reducing the waste of packaging film.
Standard main machine body

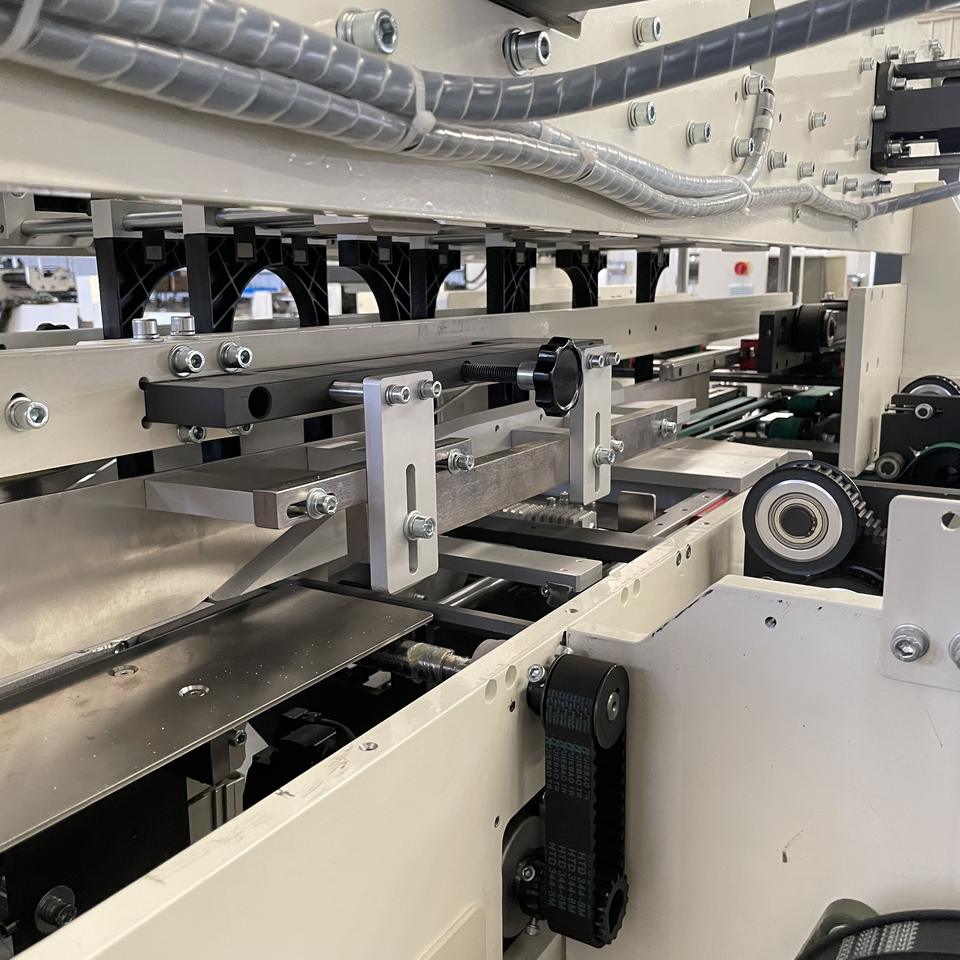

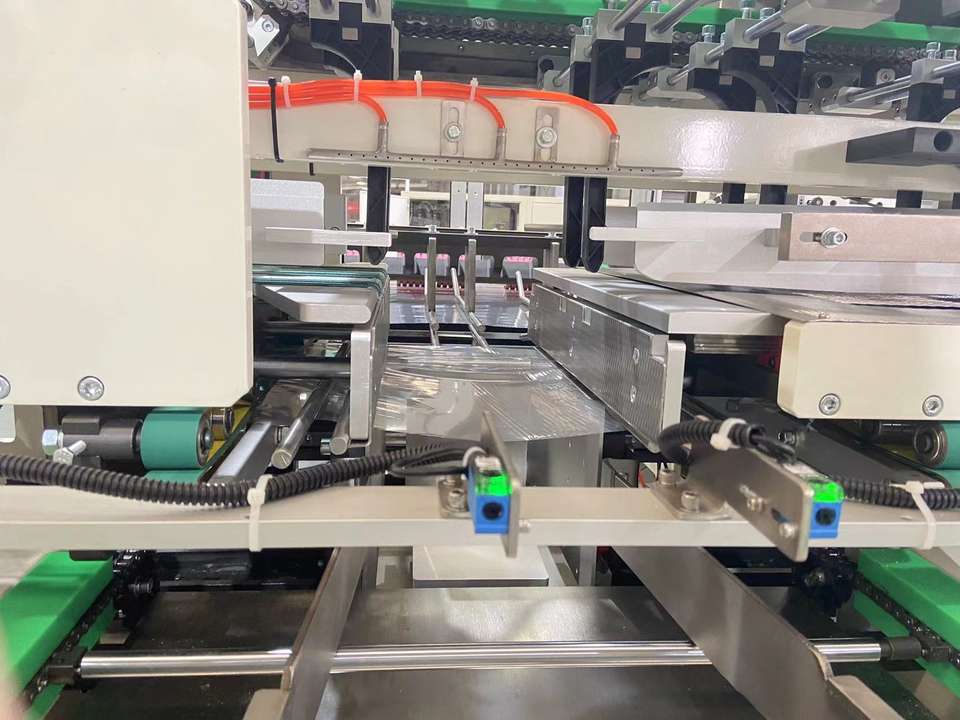

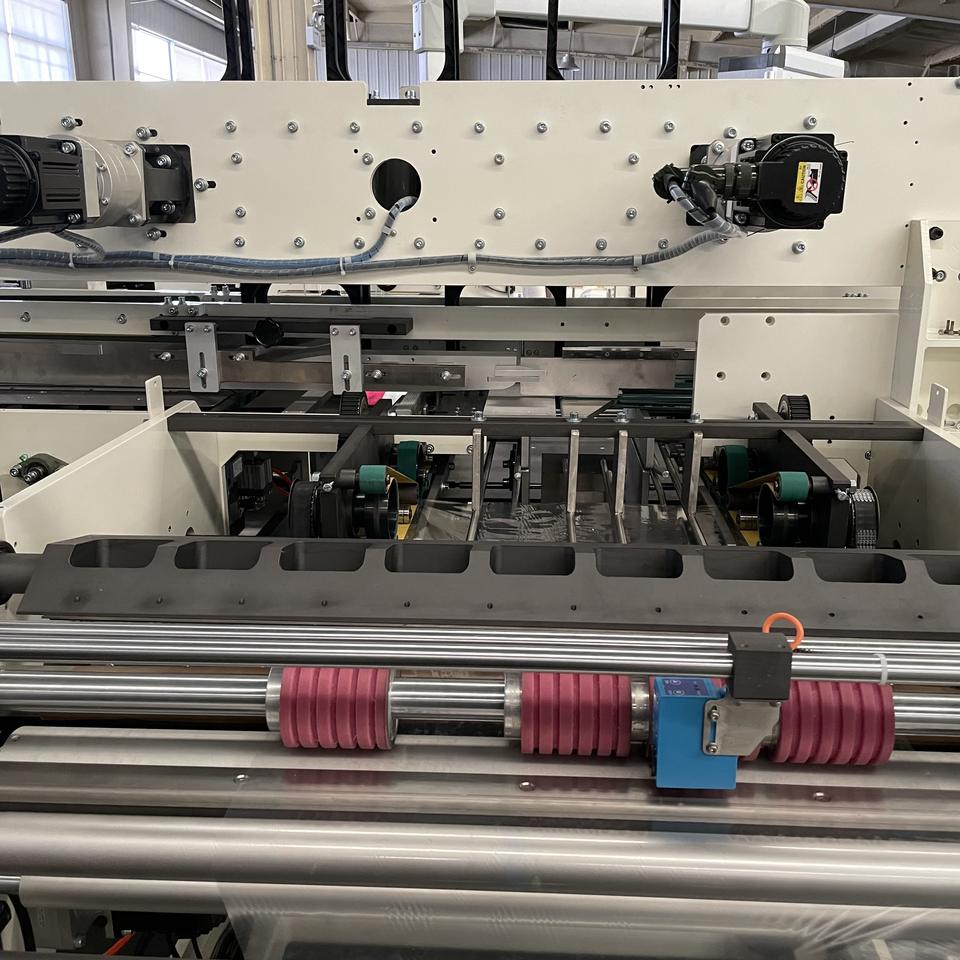

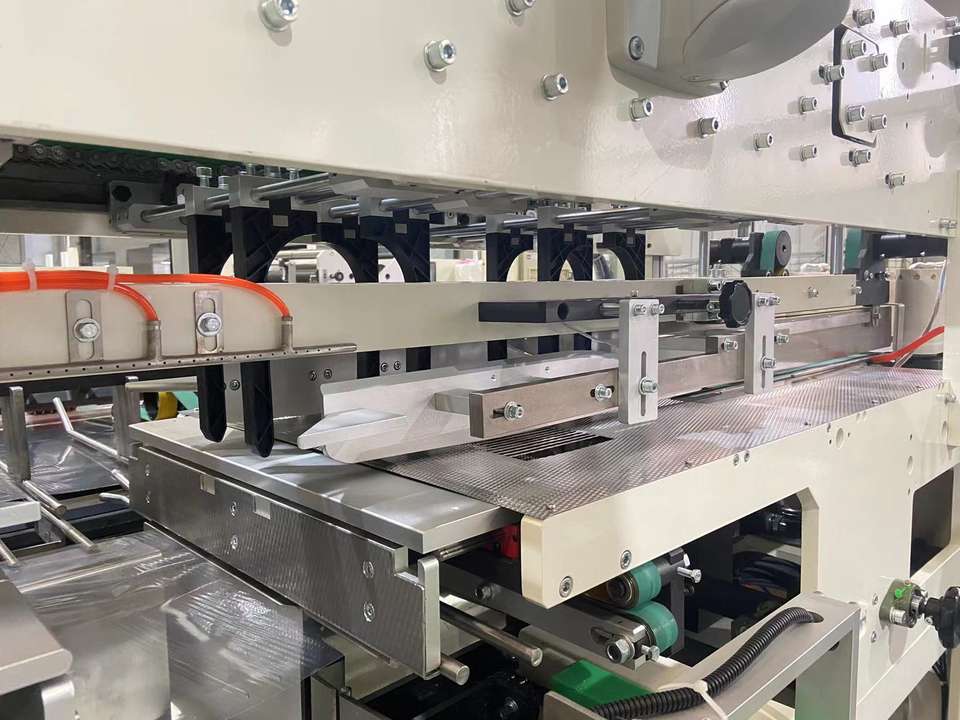

Each moving part of the main engine is driven independently by a servo, with fast response speed and precise action.
The whole machine runs uniformly equipped with motion controller, touch screen, servo motor, and temperature control module to complete the operation control. The host program will automatically increase the speed from the starting speed to the set speed according to the front-end incoming materials.

Model		ZB580
Bagging size	Packing size range	1. If pack 1 pcs/bag , diameter : 90-150mm , length: 90-280mm; 2. If pack 2 pcs/bag , each single roll size :the diameter : 90-150mm , length: 90-280mm; (Note: total width not exceed 320mm)
Packing film	The biggest support film diameter	φ400 mm
	Maximum packing film roll width	850mm
	Suitable packaging film thickness	0.025mm—0.035mm;
	Suitable packaging film material	SPP,KPP,OPP double-sided heat-sealing film
Designed packaging speed		double-roll packaging 30-60 bags /min single packaging 30-85 bags/min
Power	Motor power	12 Kw
	Main machine heating power	1.5Kw
	Side sealing heating power	3.5 Kw
Total power		17 Kw
Packing qualification rate		97%
Pattern deviation rate		≤3mm
Operation efficiency of the whole machine		≥85%
Machine weight		3500 kgs
Dimensions		Length (L) 4000mm* Width (W) 4000mm* Height (H) 2000mm (mm)
Power supply type		3-phase 4-wire , 380V 50HZ, control voltage DC24V.
Compressed air consumption		50L/min
Machine noise		≤75decibels(db)
color		Host color: off-white color
