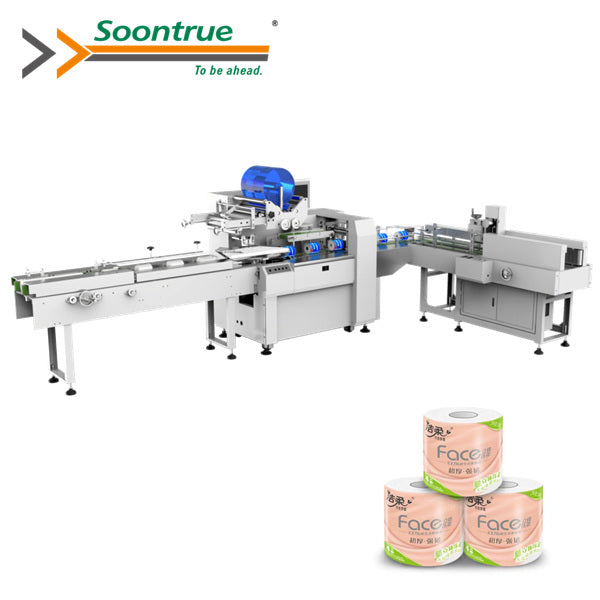

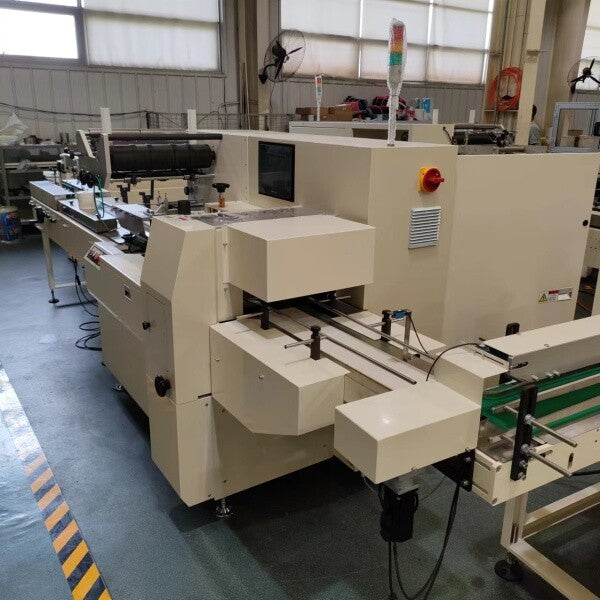

ZB530 Automatic Single Roll Toilet Paper Packing Machine
ZB530 Automatic Single Roll Toilet Paper Packing Machine
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability
Applicable
As a professional roll tissue machine supplier, Soontrue can provide various toilet roll packaging machine and bandsaw machines with different specification choices, which can greatly meet the needs of different customers.
| Model | ZB530 | |
| Film size
|
Diameter | 85-135(mm) |
| Length | 90-220(mm) | |

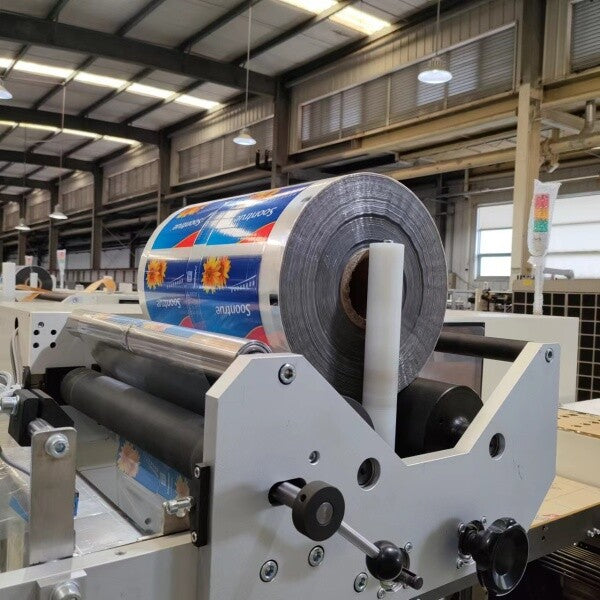

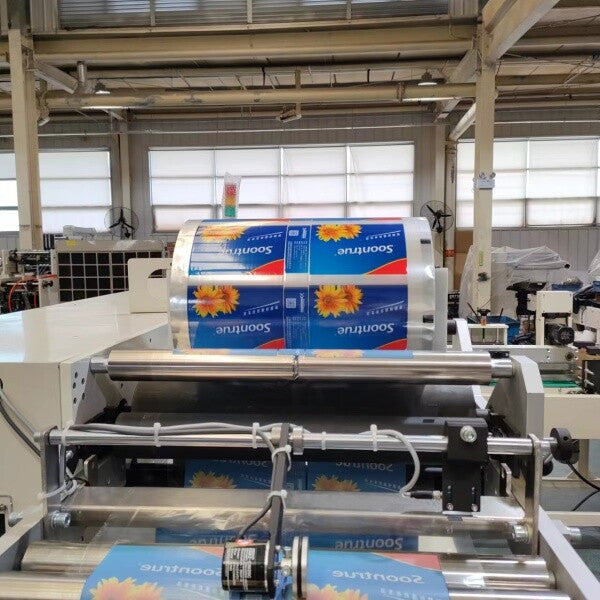

| Packaging film | Maximum diaphragm diameter | φ400 mm |
| Maximum volume width | 420mm | |
| Film thickness | 0.018mm—0.03mm； | |
| Film material | SPP Double-sided hot sealing film | |
| Design speed | 200 Grains/min （Color mark distance≤270mm） | |
| Power | Motor power | 1.5 Kw(Pull film motor power) 1Kw(End-sealed motor power) 0.75Kw(Reverse motor power ) 0.75 Kw +0.75 Kw (Tidy and push material motor power) |
| Host heating power | 5Kw | |
| Side heating power | 7.2 Kw | |
| Total power | 15 Kw | |
| Pass rate | 97% | |
| Pattern deviation | ≤3mm | |
| Machine operation efficiency | ≥85% | |
| Machine weight | 2200(kg) | |
| Overall dimensions | (L)4330mm*(W)3450mm*(H)1700(mm) | |
| Power type | 3phase 4wire,380V 50HZ, control voltage DC24V. | |
| Compressed air amount | 250L/min | |
| Noise | ≤75（db） | |
| Color | Host color: beige white | |
