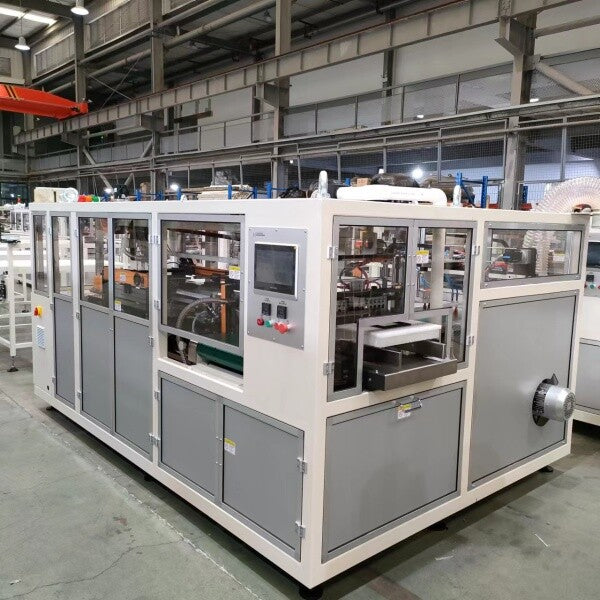

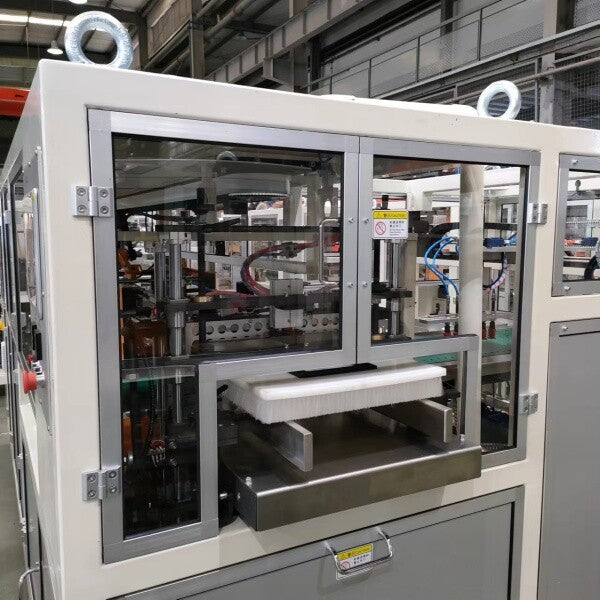

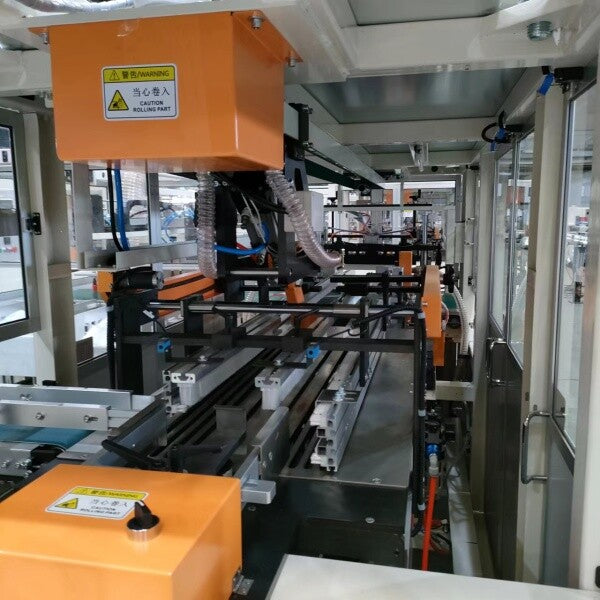

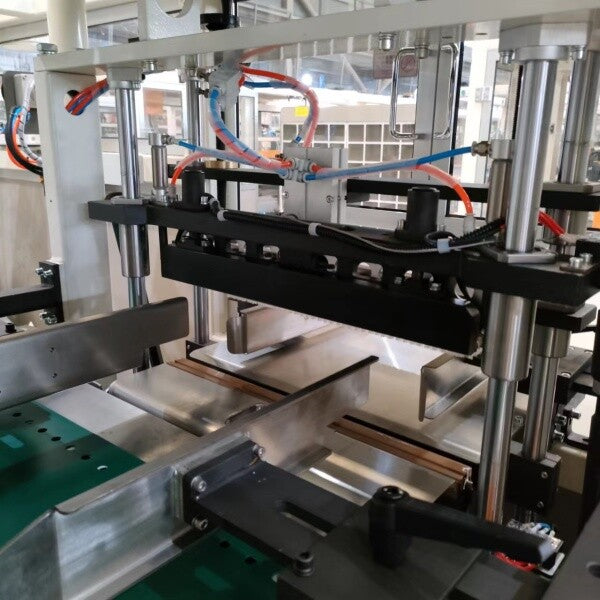

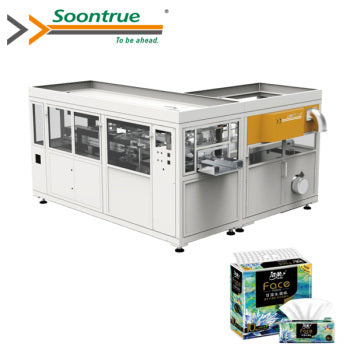

TD300AN Facial Tissue Paper Bundling Packing Machine
TD300AN Facial Tissue Paper Bundling Packing Machine
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability
Applicable
Soontrue Automatic Soft Facial Tissue packing Machine and High speed fully automatic facial tissue single/bundle wrapping machine is suitable for automatically packing V fold hand towel,facial tissue, square tissue, pocket tissues, cotton tissues etc and napkin packing etc.
| Model | TD300AN |
| Packing size | Max bundle length:550mm Bundle width range:120~420mm Bundle height range：90~250mm； |
| Packaging form | Single row 3/4/5/6 packs, double row 6/8/10/12 packs |
| Bag material | M-shaped prefabricated bag with exhaust hole |
| Packing speed | ≤25 bags / min (double row 6 packages); |
| Power supply | 380V ± 5%, 50Hz 3 phase 4 wire, the control voltage is all DC 24V; |
| Using air pressure | About 0.6~0.7Mpa (the demand-er prepares the air source by himself) |
| Equipment power | Single installed power :15KW Using power :10KW; |
| Safety equipment | The safety marks shall be provided according to the CE standard; |
| Bag residue | 25-30mm of waste material cut into the waste film box by automatic film absorption. |
