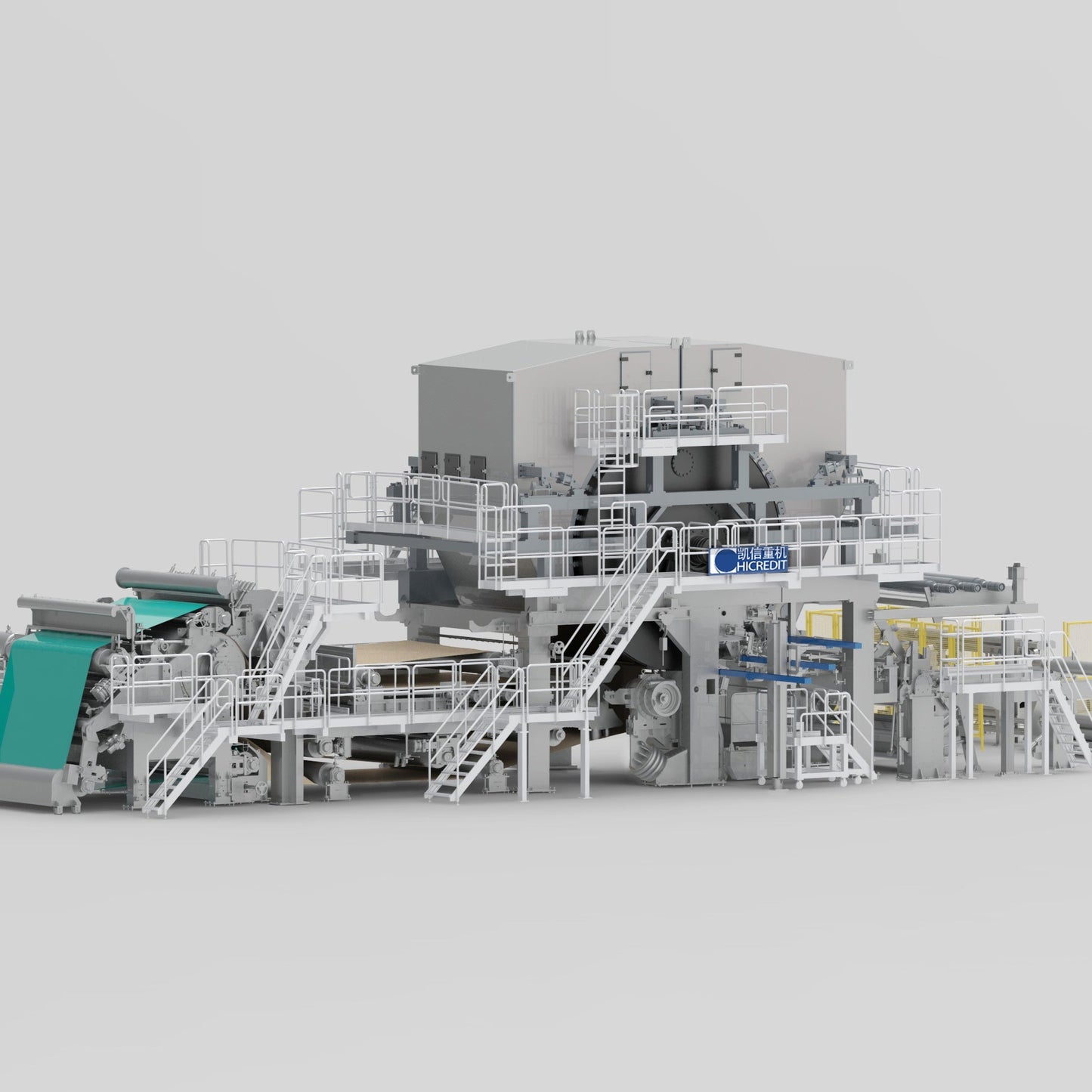

High-speed Crescent Former Tissue Machine

Trimmed width	2660~5600mm
Speed	1200~1800m/min
Basis Weight	13ï½42g/m^2

Product Description
Crescent Former High-speed Tissue Machine mainly consists of hydraulic headbox, former, suction press roll, Yankee dryer, high-speed hot air hood, and pope reel and so on.
Technical Advantages

• Hydraulic headbox is adopted. Precision designed mixing chamber and rectifier section ensure excellent fiber orientation and formation so as to get better tissue quality
• Specially designed water collecting tray for the Crescent Former reduce the air entrainment into white water to the minimum
• In wire section, the wire and felt are changed with cantilever beam. It is easy to operate and save time so that the production efficiency is improved.
• Position adjustment of breast roll is power-operated in order to choose the optimal jet impingement while machine is running
• Press rolls of different diameter will be used according to different raw materials, which ensure dryness along with the best bulk
• Efficient design of tail transfer from creping doctor to the reel performs also web stabilization
• The pope reel is provided with reel spools storage magazine and reel spool automatic feeding and it performs the desired jumbo roll hardness
