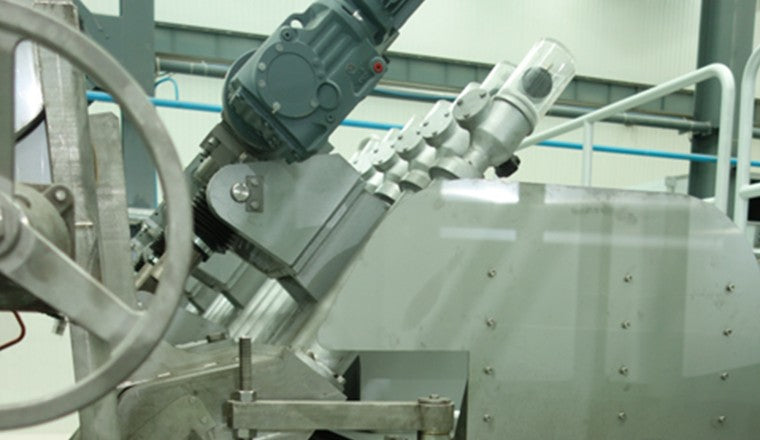

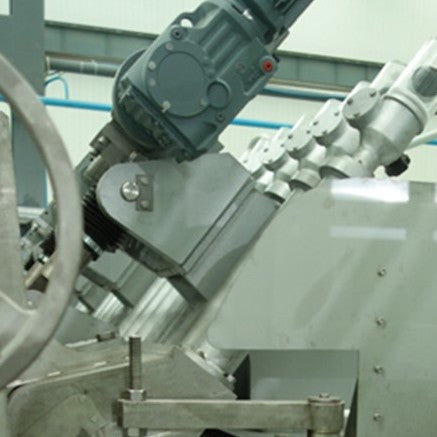

Headbox

Trimmed width	2660~5600mm
Speed	600~1800m/min
Basis Weight	13~42g/m2

Product Description
Headbox is the key part of tissue machine, mainly includes_conical header, perforated plate,_mixing chamber, turbulence generator, slices etc.

Technical Advantages

• Hydraulic Headbox
• Conical header has circular section and parabolic profile in order to assure uniform pressure profile across the machine.
• The lip stick out has an adjustable profile, thanks to a set of microjacks_equally spaced and manually operated, thus allowing the basis weight profile adjustment
• The Headbox_allow the tilting adjustment, thus getting the proper jet impingement angle against the forming fabric
• The tube bank has the function of micro turbulence generation, preventing eddies and assuring uniform flow distribution.
