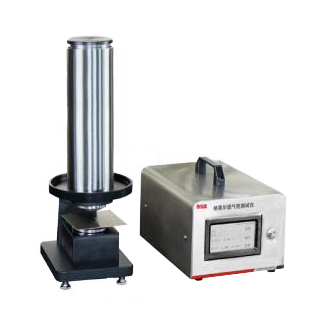

DRK461A Gurley legality tester

Instrument use：

It can be applied to quality control and research and development of papermaking, textile, non-woven fabric, plastic film, etc.

Standards compliant：

ISO5636-5-2013 and other standards.

Technical parameter：

1. Inner cylinder weight: 567g;
2. Inner cylinder scale: 0～100mL every 25mL marked scale, 100mL～300mL, every 50mL marked scale;
3. The height of the inner cylinder: 254mm, the outer diameter is 76.2 plus or minus 0.5mm;
4. Sample area: 100mm×100mm;
5. Outer cylinder height: 254mm, inner diameter 82.6mm;
6. Diameter of test hole: 28.6mm±0.1mm;
7. Timing accuracy of timing module: ±0.1s;
8. Sealing oil density: (860±30) kg/m3;
9. Sealing oil viscosity: (16～19) cp at 20℃;
10. Appearance of the instrument (L×W×H): 300mm×360mm×750mm;
11. Instrument weight: about 25kg;
12. Power supply: AC220V, 50Hz, 100W

Note: Due to technological progress, the information will be changed without notice. The product is subject to the actual product in the later period
