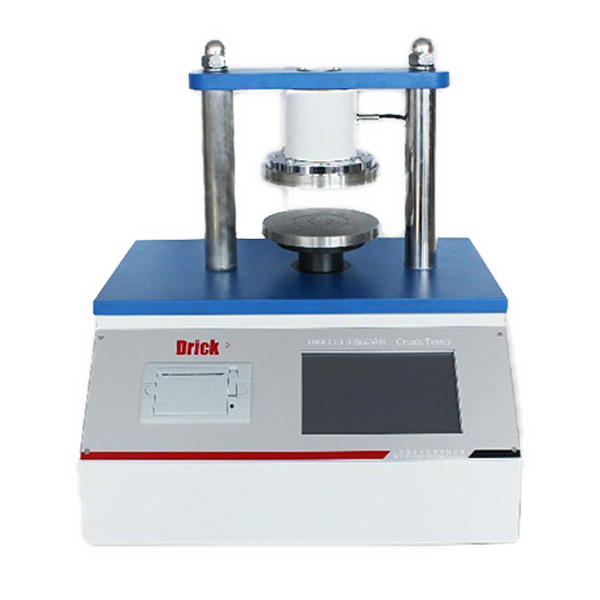

DRK113A Crush Tester-Touch screen

Product Introduction

DRK113A Crush Tester-Touch Screen is a high accuracy and intelligent instrument, designed according relevant standards. The advanced components, mating parts and single chip micro-computer are logical structured, to ensure the property and appearance. The instrument has all kinds of parameter testing, switch, adjusting, display, memory, printing functions.

Product features

1、Mechatronics modern design concept, compact structure, nice appearance, easy maintenance.

2、Adopting fixed on upper platen type, high precison weighing sensor, to ensure colleting data rapidly and accurately; high measurement accuracy.

3、Adopting high-speed ARM processor, high degree of automation, data acquisition is fast, automatic measurement, intelligent judgment functions, safe and reliable has powerful data processing function, It have power data processing function, can get all the statistical results, and can automatic reset, convenient operation, easy adjustment, stable performance.

4、Display the pressure force and deflection in time on the LCD display.

5、Adopting modular body thermal printers, print speed is quick, convenient in paper;

Product application

It is mainly applied to do Ring Crush Test(RCT) for paper, thickness of 0.15～1.00mm; Edge Crush Test(ECT) for cardboard, Flat Press Test(FCT) for cardboard, Adhesive Strength Test(PAT) for cardboard and Tube Compress Test(CMT) for small paper tube, diameter less than 60mm.

It is also used in testing compression strength of paper cup, paper bowl, paper barrel, paper tube and other type small package. It is an ideal testing equipment for paper package manufacturer, scientific research institution, quality inspection department.

Technical standards

ISO 12192          《paper and board----compressive strength-----ring crush method》

ISO 3035         《single-faced and single-wall corrugated fibreboard-determination of flat crush resistance》

ISO 3037           《corrugated fibreboard. Determination of edgewise Crush resistance (unwaxed edge method) 》

ISO 7263              《 corrugating medium-determination of the flat crush resistance after laboratory fluting》

GB/T 2679.6          《corrugating paper-determination of the flat crush resistance》

QB/T1048-98          《board and carton box-tester of crush resistance》

GB/T 2679.8           《paper and board –determination of compressive strength-ring crush method》

GB/T 6546              《corrugated fibreboard-determination of edgewise crush resistance》

GB/T 6548              《corrugated fibreboard- determination of ply adhesive strength》

Product parameter

Main fixtures

Mainframe, certificate of quality, power line, 4 rolls of printer paper, operational manual,

Optional: RCT central plates, RCT sample cutter, ECT sample cutter, ECT blocks, PAT clamps, Computer and software, etc.
