DRK113 Accessories for crush tester
DRK113 Accessories for crush tester
Couldn't load pickup availability

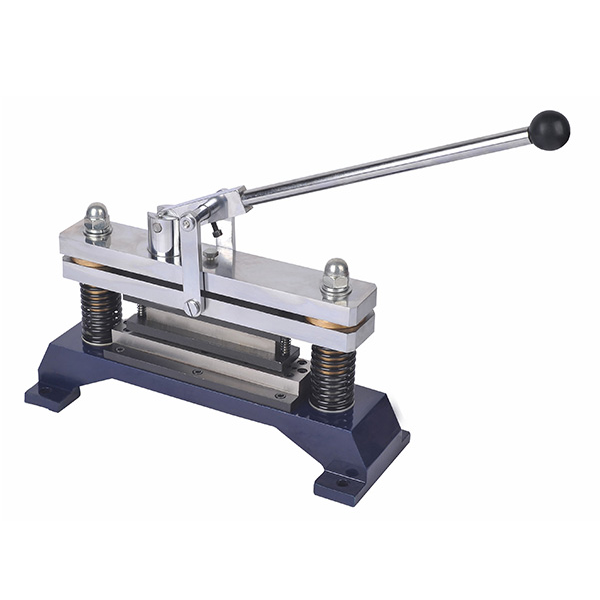

DRK113-1 RCT Sample Cutter
Introduction
The instrument according to GB/1048 regulations to manufacture, it is the sample cutter for the test of all kinds of paper and paperboard.
Characteristics
The sampling devices pleasing to look, compact structure, reasonable and effortless operation, easy to use
Application
It is the sample cutter for the test of all kinds of paper and paperboard. It is the supporting tool of DRK113 Crush Tester.
Standards
The instrument according to GB/1048 regulations to manufacture.
Parameter
- Sample width: 12.7-0.025mm
- Sample length: 152-0.25mm
- sample both sides parallelism: ＜0.015mm
Configurations
Mainframe; operating manual; certificate of quality

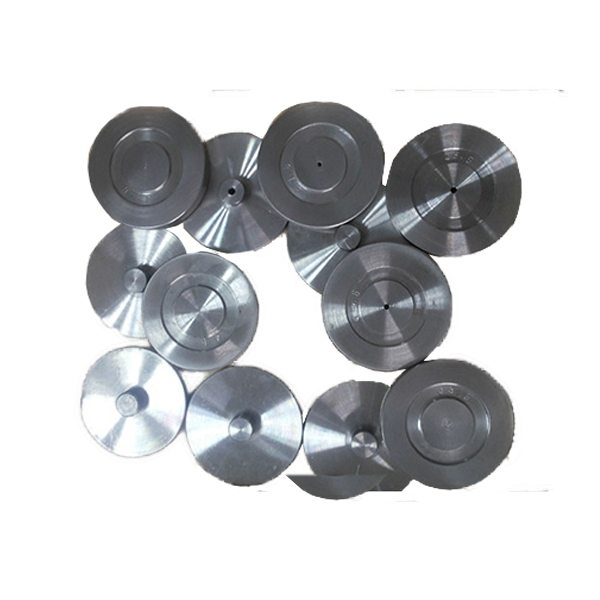

DRK113-3 RCT Central Disc
Introduction
Ring Crush central disc is the sample cutter for the test of all kinds of paper and paperboard.
Characteristics
The sampling devices pleasing to look, compact structure, reasonable and effortless operation, easy to use.
Application
Ring Crush central disc composed of sample base and a variety of different sizes of center disks.
Standards
It conforms to the standards of ISO 12192《Paper and board -- Compressive strength -- Ring crush method》and GB/T 2679.8 《Determination of the compressive strength of paper and cardboard ring》
Parameter
Ring groove width: 0.15mm-1.00 mm, 13 kinds of specifications, replacement different center of the disk can be measured in different thickness of the specimen.
Configurations
A set of central disc

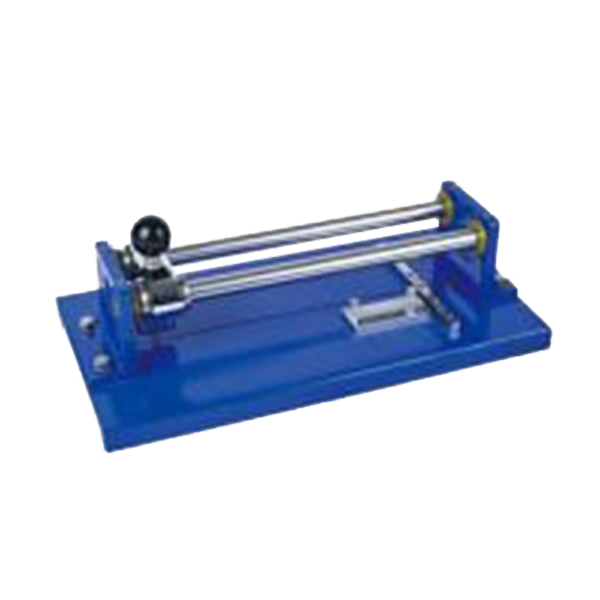

DRK113-2 ECT Sample Cutter
Introduction
It is corrugated fiberboard edge crush test sample cutter (ECT Sample Cutter) / adhesive sample cutter for the test of all kinds of paper and paperboard.
Characteristics
The sampling devices pleasing to look, compact structure, reasonable and effortless operation, easy to use
Application
It is the sample cutter for the test of all kinds of paper and paperboard. It is the supporting tool of DRK113 Crush Tester.
Parameter
- Sample size: 25mm×100mm (ECT), 25mm×80mm (adhesive)
- Result error: ±0.5mm
- Maximum length: 220mm
- Maximum thickness: 18mm
- Dimension (l×w×h): 430mm×380mm×200mm
- Weight: 22kg
Configurations
Mainframe

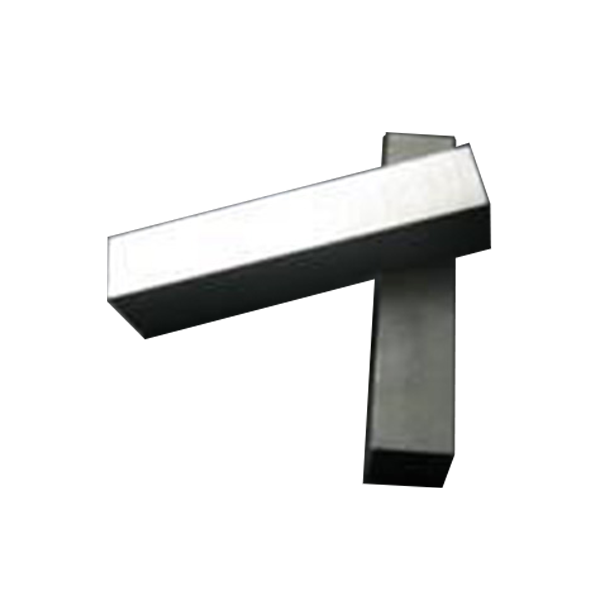

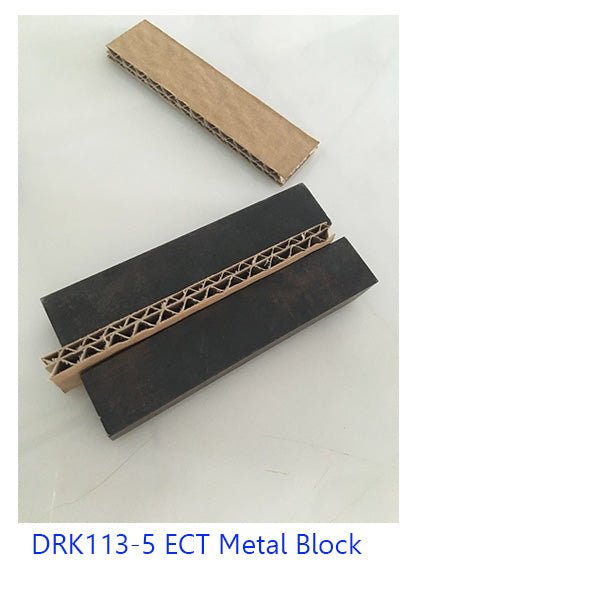

DRK113-5 ECT Metal Block
It is two blocks to fixate the specimen
Size: 10×2×2(cm)
Weight: 0.2kg

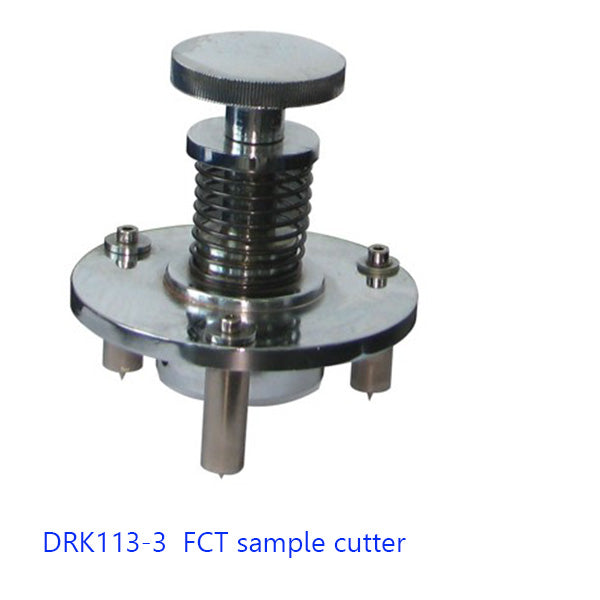

DRK113-3 FCT sample cutter
Product Introduction
FCT sample cutter is the Special apparatus of my company produced corrugated board flat crush test, it is the supporting tool of DRK113 Crush Tester.
Product features
The sampling devices pleasing to look, compact structure, high accuracy, easy maintains.
Product application
Take a corrugated board, press the sampler in the corrugated board, Press the handle clockwise rotation to 3-5 laps and sample will be cut. Do not counterclockwise rotation to prevent the blade being damaged.
Technical standards
ISO3035 《Corrugated fiberboard ― Determination of flat crush resistance》
GB/T 2679.6《Determination of corrugated paper flat crush resistance》
Product parameter
Sampling area: 64.5 mm² or 32.2 mm²
Main fixtures
Mainframe; operating manual; certificate of quality.

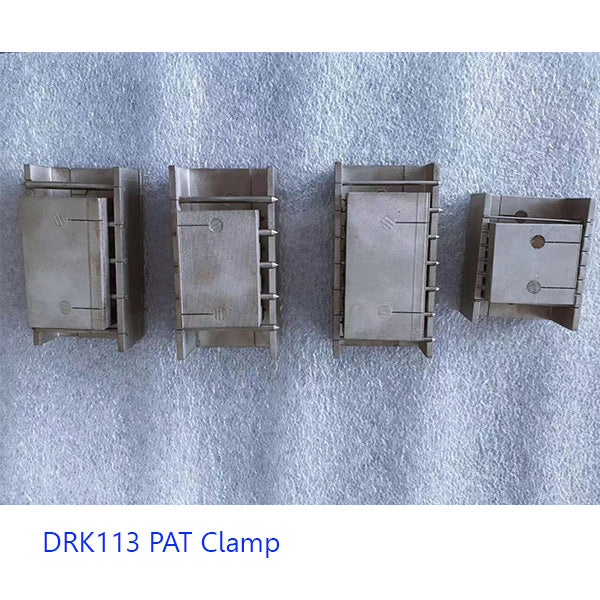

DRK113 PAT Clamp
Introduction
It is corrugated fiberboard pin adhesive strength test clamp (PAT Clamp) for the test of all kinds of paper and paperboard.
Characteristics
The sampling devices pleasing to look, compact structure, reasonable and effortless operation, easy to use
Application
It is the sample cutter for the test of all kinds of paper and paperboard. It is the supporting tool of DRK113 Crush Tester.
Parameter
- Needle diameter: φ3mm (A flute), φ2mm (B, C flute) φ1mm (E flute)
- Result error: assembled <1/100; pressed (300N) <1/200
- Maximum dimension (l×w×h)): 100×50×45(mm)
- weight: 0.6kg
Configurations
Mainframe
