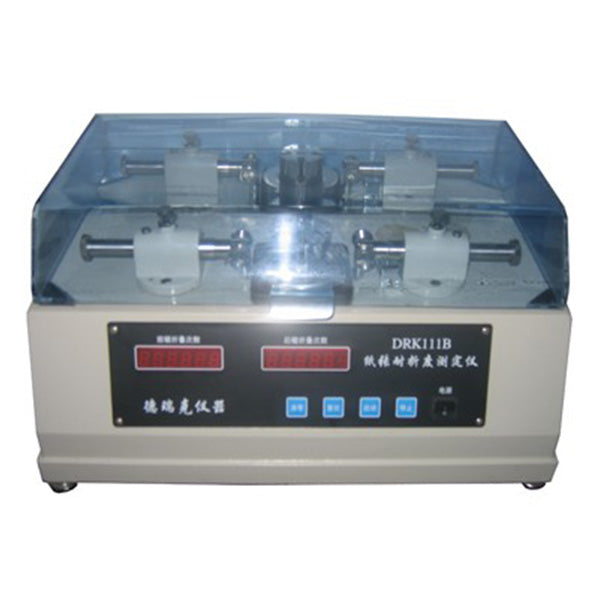

DRK111B Schopper Folding Tester

Product introduction

DRK111B folding tester is designed according to relevant standards and adopts modern mechanical philosophy and computer processing technology. It has LCD display function, various parameters setting function, conversion, adjust, memory, printing and other functions。

Product features

New drive system and cooling system;

Temperature sensor monitors test temperature;

Two kinds of folding head to improve test efficiency;

Test data can be displaced by LCD, stored in micro-computer and printed by micro-printer.

Analyze Max. value, Min. value, average and coefficient of variation of a group test results.

Judge the break state and repeated folding number before breaking;
Silent Motor drives the folding head;

Precise bearing drives cutter to ensure steady running and good repeatability;

The test will stop and the folding knife will return back automatically after test.

Product application

The instrument is suitable to test the folding endurance of paper and Film, coated fabric, which tensile strength is higher than 1.33KN/m and thickness is lower than 0.25mm.

Technical standards

1. QB/T 457-2002 《paper -determination of folding endurance》

• ISO 5626 --Paper determination of folding resistance
  3、TAPPI 523--Testing of polymer film and some coated paper samples

4. NF Q03-062-- Paper determination of folding resistance


Product parameter

item	parameter
Test Range	0 ~ 0.25 mm
Thickness of Folding Clamp	0.5±0.05 mm
Spring tension	770 / 1000 g
Specimen Endurance	First tension 7.55±0.10N   max tension 9.81±0.10N
Folding Speed	110±10times/ min
Folding roller diameter	6 mm
Distance between folding sheet and folding roller	0.30 mm
Distance between folding rollers	0.5 mm
Distance between clamps in same group	90±0.5 mm
Specimen size	90x15mm
counting range	0-9999times
power	220V±10%  50Hz
Power consumption	80W
weight	23kg
dimension	（mm）：540×550×300



Main fixtures

Mainframe，power line，operational manual
