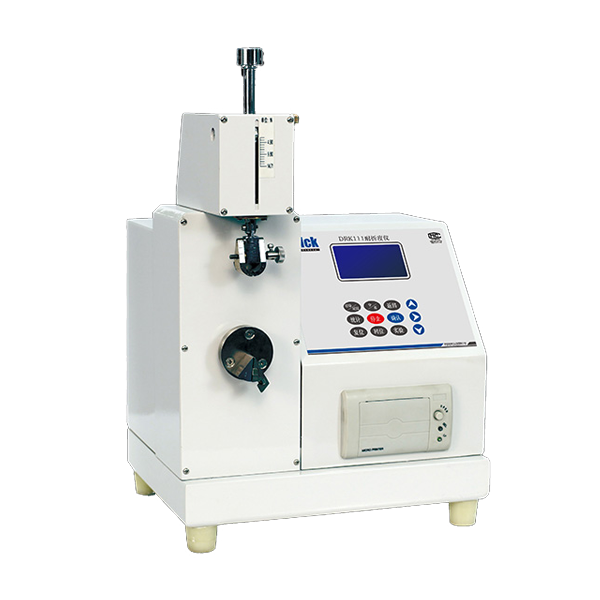

DRK111AMIT Folding tester-Buttton type

Product introduction

DRK111A MIT folding tester is designed according to relevant standards and adopts modern mechanical philosophy and computer processing technology. It has LCD display function, various parameters setting function, conversion, adjust, memory, printing and other functions。

Product features

Microcomputer control; high automaticity;

Data collection test and display are simultaneous;

Easy and convenient to use;

Return to zero automatically;

Precise servo motor control

Statistics and data store functions

High-speed micro-printer

Product application

Folding tester complies with relevant standard. It is suitable to test fatigue strength of paper, paperboard and other sheet material, which thickness is less than 1mm. The instrument adopts photoelectric control technology, so that folding chuck can return back after each experiment automatically, convenient for next operation. The instruments have a powerful data processing functions: covering one test data to different unit value, statistics a group of test data, analyzing the Max. value, Min. value, average and coefficient of variation, storing them in micro-computer and being displaced in LCD screen.

Technical standards

ISO 5626：          paper-determination of folding endurance

GB/T 2679.5：        paper and board-determination of folding endurance (MIT tester)

GB/457                 paper and board-determination of folding endurance

QB/T 1049：          paper and board—Tester of folding endurance

Technical Data

Main fixtures

Mainframe，folding head 0.25 0.5 0.75 1.00，power line，operational manual
