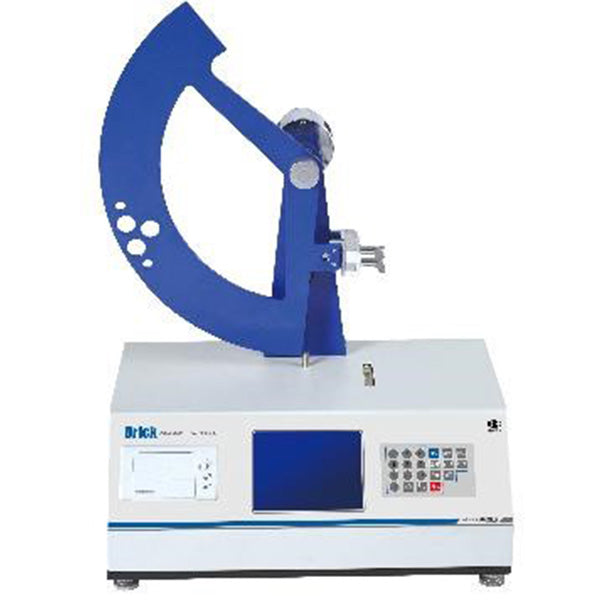

DRK108B Electronic Tearing strength tester

Product introduction

DRK108B Electronic Tearing Strength Tester is the special
instrument for tearing strength test. In paper making industry,
packaging industry, science and research industry and supervision
and inspection industry, it is necessary.

Product features

1. Mechatronics and compact structure design, to ensure the elegant appearance, also easy to
maintain.
2. Adopt high precision AD converter(resolution is 1/10,000,000) and high precision angle sensor
to ensure collecting the data fast and correct.
3. Equipped with Micro-printer, convenient to print the report.
4. Connect to computer, to display the curve, also can analyze, save, print the data.
5. The configuration is very flexible, to reach different functions.

Product application

Appling in testing paper tearing strength.
If change the configuration, it can be used to test other materials, like plastic, chemical fiber, metal wire, metal foil and so on.

Technical standards

ISO 1974:1990 <Paper -- Determination of tearing resistance (Elmendorf method)>
GB/T 10739-2002 <Paper, board and pulps – Standard atmosphere for conditioning and testing>
ISO 186:1994 <Paper and board - Sampling to determine average quality>
GB 455.1 <Paper - Determination of tearing>

Product parameters

Items	Parameters
Test Range(standard pendulum)	(10 ~ 1000)mN, (division value 10mN)
Test Range(light pendulum)	(10 ~ 500)mN, (division value 5mN)
Test Range(lightest pendulum)	(10 ~ 200)mN, (division value 2mN)
Display error	During full scale of 20%--80%: ±1% Outsides of the range: ±0.5%FS
Repeatability error	During full scale of 20%--80%:﹤1% Outsides of the range: ﹤0.5%FS
Tearing arm	(104±1)mm.
Beginning angle for tearing	27.5°±0.5°
Tearing distance	(43±0.5)mm
Specimen Clamping size	(25×15)mm
Clamp distance	(2.8±0.3)mm
Environment Condition	Temperature: 23°C，Relative humidity 50%+/-5
Instrument Size	460×400×400mm
Weight	32kg

Main fixtures

Mainframe, A power line and four rolls printing paper
