DRK107B Paper Thickness Teste
DRK107B Paper Thickness Teste
Couldn't load pickup availability
Product introduction

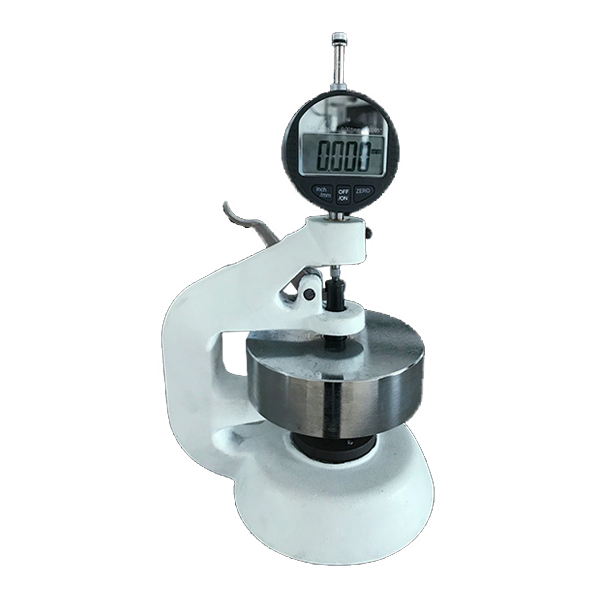

DRK107B Paper Thickness Tester is professionally applied to testing the thickness of paper specimens.
Product Features
Manual type, digital display/pointer type and percentile/micrometer type, compact and portable structure.
Product application
This equipment is suitable for the thickness measurement of flat sheet pattern, and can be widely used for the thickness measurement of paper, cardboard, other sheet materials and corrugated cardboard.
Technical standards
ISO 534 <Paper and board – Determination of thickness, density and specific volume>
ISO 438 <Paper - Determination of bulking thickness and apparent density>
GB/T451.3 <Paper and board－Determination of thickness>
GB/T1983 <Soft paper－Determination of thickness>
Technical Parameters
|
Item |
Parameter |
|
measuring range |
0-12.7mm |
|
Contact Area |
2±0.05C㎡ |
|
Contact Pressure |
100±10kPa |
|
Scale Division Value |
0.001mm |
|
Repeatability |
±2.5μm或±0.5% |
|
Dimension |
240×160×120(㎜) |
|
Weight |
2.5㎏ |
Main fixtures
- Main machine
- Power line
- Operating manual
