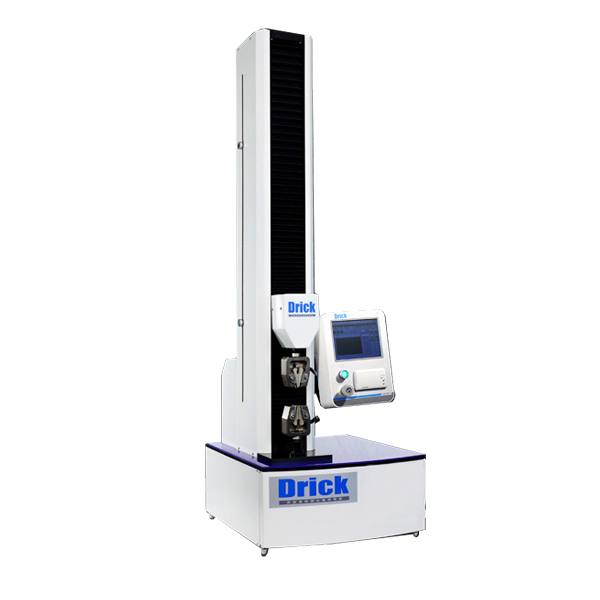

DRK101 Universal Tester-One column

Product Introduction

DRK101 tensile strength tester is designed and manufactured according to national standard ,it applies the modern mechanical design concept and the design principle of ergonomics and uses advanced microcomputer processing technology. DRK101 is new generation of tensile strength tester with new design ,easy-to-operate,advanced performance and beautiful appearance features.

Product Features

1.Transmission mechanism adopts ball screw technology, stable and accurate transmission; imported servo motor,low noise and accurate control

2.one kind of software is 8 inch touch screen display,english language menu. Real-time display of time, load tension; another one is the newest computer software has real-time display of anti - tension curve function ;the instrument has powerful data display and analysis, management capabilities.

3.Applies modular type printer which is easy to install and has low fault;thermal printer

4.Direct measuring result: after one group of experiment is finished ,the result is shown and the report is printed directly including mean, standard deviation and coefficient of variation.

5.High degree of automation :the instrument applies advanced accessories domestic and abroad .Microcomputer operates information sensing, data processing and motion control,has features of automatic reset, data memory, overload protection and fault self diagnosis.

6. Multi function, flexible configuration: the instrument is mainly used to measure the plastic films.If users change the configuration , the instruments can also be used to measure other materials such as paper, chemical fiber, metal wire, metal foil. Also it can be applies in measuring film resistance, tensile strength, elongation, breaking length, tensile energy absorption, tensile index, anti-tension energy absorption index. Especially can measure micro values.

Product Application

Applicable in Paper, cardboard, plastic film, composite film, flexible packaging materials, adhesive, adhesive tape, adhesive, rubber, paper, plastic aluminum plate, paint, fabric, textile, waterproof material, triangle belt; 180 degree peel, 90 degrees peel strength, elongation, fixed length force experiment ; 700mm stretch space (can be customized ) desktop model.

Technical Standard

This instrument meets a number of national and international standards:ISO 37、GB 8808、GB/T 1040.1-2006、GB/T 1040.2-2006、GB/T1040.3-2006、GB/T 1040.4-2006、GB/T 1040.5-2008、GB/T 4850-2002、 GB/T 12914-2008、GB/T 17200、 GB/T 16578.1-2008、 GB/T 7122、 GB/T 2790、GB/T 2791、GB/T 2792、GB/T 17590、 ASTM E4、ASTM D882、ASTM D1938、 ASTM D3330、ASTM F88、 ASTM F904、JIS P8113、 QB/T 2358、 QB/T 1130

Product Parameters

Product Configuration

Main Instruments,communication cables,one power line ,four rolls of printing paper,qualification certificate,product instruction

PS:optional computer system.

Software pictures

1.touch screen operation

there are 8 kinds of experimental items can be choosed

Heat seal test condition- there are curve with the force changing in the test process

The results can be printed by thermal printing.

2. Computer controlled software and system

Computer operation system, not only can adjust the parameter but also can connect to commonly HP printer to get result in microsoft excel or word, all data can kept in computer with permanent time.

Computer controlled system

Measurement Device( inclusive)

Measurement Device (Optional)
