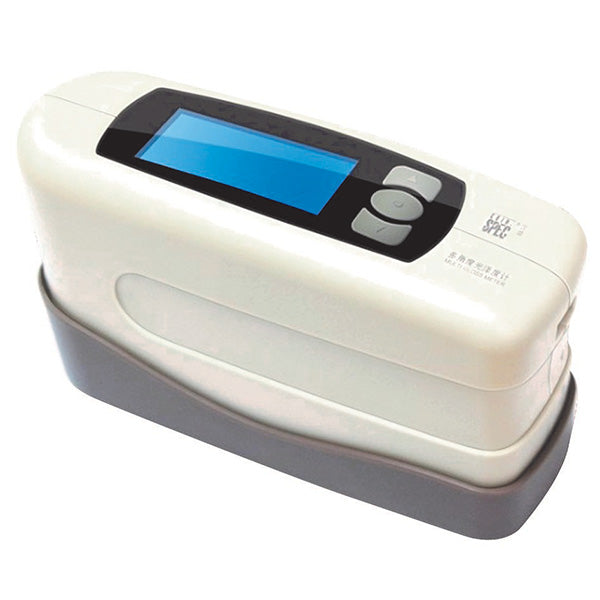

DRK 118B Portable 206085 Gloss Meter

Name: DRK 118B Portable 206085 Gloss Meter
Brand: Drick
Availability: InStock

$0.00 USD

Sale Sold out

Product variants

Quantity

Product Introduction

DRK118B is a new type of high accuracy intelligent tester, which is researched and developed according to national standard, adopting modern mechanical design concept and microcomputer processing techniques.

Product features

The fine appearance design accords with human body mechanics, allowing you to use handy.
Chinese operating interface, the operation is more simple and convenient.
Gloss data displays at the same time from 3 different angles to meet your data needs under the condition of different luster.
The latest Bluetooth and mobile memory card make your data exchange more convenient.
Special gloss software can help you for data analysis and output

Product application

Gloss Meter is used for measuring the surface glossiness of paint coatings, decoration materials, building materials, plastic materials, bamboo and wood products, ceramic products, leather products, film paper, printing ink, car maintenance, molding, and many other areas.

Technical standards

It conforms to the standards of ISO2813，ISO7668 ASTM D523, ASTM D2457 GB/T 9754，GB/T13891，GB/T7706，GB/T8807. Various performance indexes meet the national metrological verification procedures JJG 696-696 level.

Product parameter

Measuring angle	Degree	20° 60° 85°
Range of measuring	GU	Gs（ 20°）：0.0~120 Gs（ 60°）：0.0~120 Gs（ 85°）：0.0~120		Gs（ 20°）：0~2000 Gs（ 60°）：120~1200 Gs（ 85°）：120~160
Measuring Area	mm	Gs（ 20°）：1010 Gs（ 60°）：915 Gs（ 85°）：5*38
Division	GU	0.1	1
Reproducibility	GU	0.2	0.2%
Repeatability	GU	0.5	0.5%
Reading Error	GU	-1.5~+1.5	-1.5%~+1.5%
Deviation	GU	0.2
Working Temp	°C	10°C~40°C
Storage Temp	°C	-10°C~70°C
Relative Humidity		Less than 85%, Non-condensing
Main Unit Power Supply		+5V、4AAA alkaline Battery (optional)
Main Unit Dimension

Main fixtures

Mainframe; operating manual; Certificate of quality
